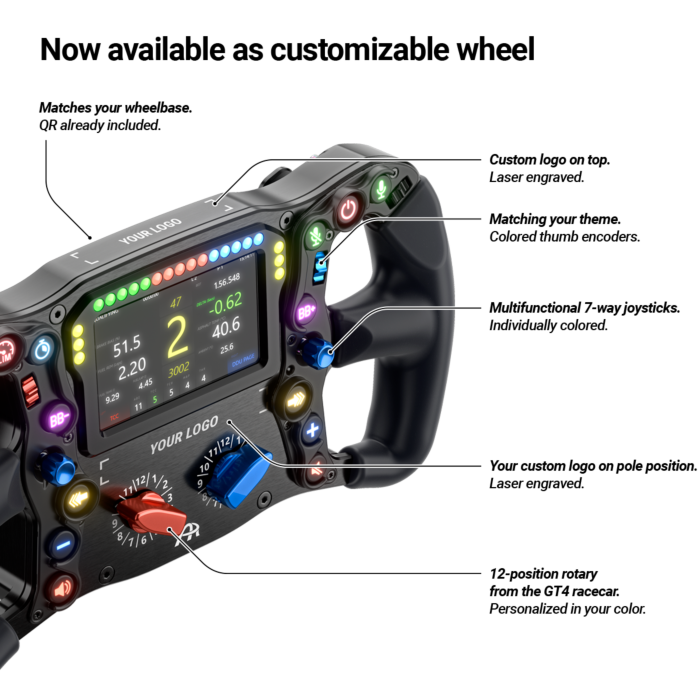

- Now customizable as YOUR Ultimate!
- Based on the official McLaren Artura GT4 wheel, it uses identical components of real-racing steering wheel with Esports-optimized functionality
- Platform-independent USB wheel
- Magnetic and silenced double paddle shifters and motorsport clutch paddles
- Closed design with ergonomically improved rubber grips for maximum safety, stiffness, and grip
- Integrated 4” dashboard & 21 x RGB LEDs (shift lights)
- 14 x RGB illuminated high-quality automotive push buttons with individually adjustable coloring (16 Mio. colors) and tactile feedback
- 4x thumb encoder
- 2 x multifunctional 7-way joysticks
- 2 x 12-position rotary switches
- Official SimHub integration
- Animated and telemetry-supported lighting
- Retrofittable single shifter
- 300 mm wheel diameter
- 6 x 70 mm hole pattern
Features:
Customizable RGB Illumination
- Colors, brightnesses, light effects and animations can be individually adjusted via SimHub
- Support of telemetry-supported light effects
- Support of individual light animations
Freely Configurable Button Mapping
- Freely configurable button mapping via Ascher Racing Control Center possible
- Free configuration of thumb encoders & rotaries via Control Center possible
- E.g., enables barrier-free switching to other steering wheels, or modifying of buttons and encoders, as well as behavior changes of rotaries (permanent, pulsed, encoder, etc.)
Adjustable Non-Linear Clutch Curves
- Various predefined non-linear clutch curves with progressive/degressive/s curves selectable
- Individual definition of clutch curves possible via Control Center
- Accurate dead zone adjustment possible
- Separate adjustment and setting of left and right clutch possible
Adjustable Encoder Pulse Width
- Encoder pulse width adjustable via Ascher Racing Control Center
- Defines how long inputs, e.g., buttons or rotaries are triggered per action
- Precise adjustment in milliseconds: range from 10ms to 200ms
Various Quick Settings Available Without Software Use
- Reset to factory (default) settings via button shortcut possible (also possible via Control Center)
- Clutch bite point calibration in 0.1% & 1.0% steps (also possible via Control Center)
- Selection of the analog input mode (e.g., for clutches, also possible via Control Center)
- Quick recalibration of the analog axes via button shortcut possible
Power Supply & Consumption
- Power Supply via coiled USB cable or via internal USB-C connection
- No additional power injection necessary, due to low power consumption within USB2.0 specification
- Flawless Asetek QR integration (no visible adapter cable, within power spec, seamless switch between coiled cable and Asetek connection possible)
Compatibility
- Fanatec
- Asetek
- VRS
- Simagic
- MOZA
- OSW
- Many others
Connection
- Cabled (USB) with Binder connector
- Active USB extension included for additional cable length
Specifications:
- 300mm diameter
- 6 x 70 mm Lochkreis
- Robust, shielded coiled cable with industrial binder M16 connector
- QR spacer may be required to create sufficient distance to the wheelbase (plug length approx. 64mm)
- Quick release not included unless selected
- Mass: 1520g
General Information:
McLAREN ESPORTS STEERING WHEEL
- Based on the original McLaren Artura GT4 steering wheel
- Uses identical components to the real racing steering wheel
- Functionality optimized for esports
- Maximum grip thanks to ergonomically improved rubber grips and a 300mm steering wheel diameter, just like in a real racing car.
USB WHEEL
- Telemetry-based RGB lighting
- Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotary encoders possible.
- Adjustable non-linear clutch curves (various predefined progressive/degressive/s-curves selectable or individual definition possible; separate adjustment of left and right clutch possible)
- Encoder pulse width adjustable (defines how long the button is triggered per click)
- Selection of the analog input mode (e.g. for clutches) & quick calibration of the analog axes directly on the steering wheel without the use of software.
- Low power consumption of only 500mA max. according to USB specification
- No power injection necessary
- Unrestricted operation with all PC motherboards
- Unrestricted operation with Asetek QR system
INTEGRATED 4" DASHBOARD & 21 RGB LED SHIFT LIGHTS
- 4" high-resolution screen
- 21x RGB LEDs (16 million colors)
- Official SimHub integration
- 16-bit color, 350 lm brightness
- Touch operation possible
- Seamlessly integrated
OVER 100 INPUTS
- 14 x RGB illuminated push buttons (16 million colors); individually customizable color scheme and tactile feedback
- 4 x thumb encoder
- 2 x multifunctional 7-way joysticks (4 directions / rotation clockwise or counterclockwise / push button)
- 2 x 12-position rotary switches
- 2 x Gen6 Motorsport Double Magnetschaltwippen
- 2 x Motorsport Clutch Paddles with electronic bite-point calibration
- Retrofittable functions (single magnetic rocker switches)
HIGH-QUALITY WORKMANSHIP
- CNC-milled from automotive-grade aluminum
- Black anodized and laser engraved
- Brushed surface on the front
- Paddle surface glass bead blasted
GEN6 DOUBLE MAGNETSCHALTWIPPEN
- Completely redesigned magnetic shift paddles for motorsport applications
- CNC-milled and anodized from automotive-grade aluminum
- Proven strong snap-action force
- Sound-dampened by rubber stops at both ends with unlimited precision thanks to small tolerances
- No play thanks to pre-tensioned ball bearings
- Marginal hysteresis for smooth and precise switching operations
- Thanks to a long-lasting Hall sensor, no switches are required.
- Unlimited component exchange thanks to identical mounting points of the shifters.
LASER-LEADED BUTTONS
- Laser-engraved button caps available with most common symbols
- Easily interchangeable thanks to the two-part design; it is not necessary to open the steering wheel.
- Additional sticker set available for various other inputs.
Whats Included:
- Ascher Racing McLaren Artura GT4 SimRacing Steering Wheel
- Ascher Racing McLaren Sticker Set
- M5 x 12 mm stainless steel screws for mounting QR
