About the Rest Pedal
Engineering

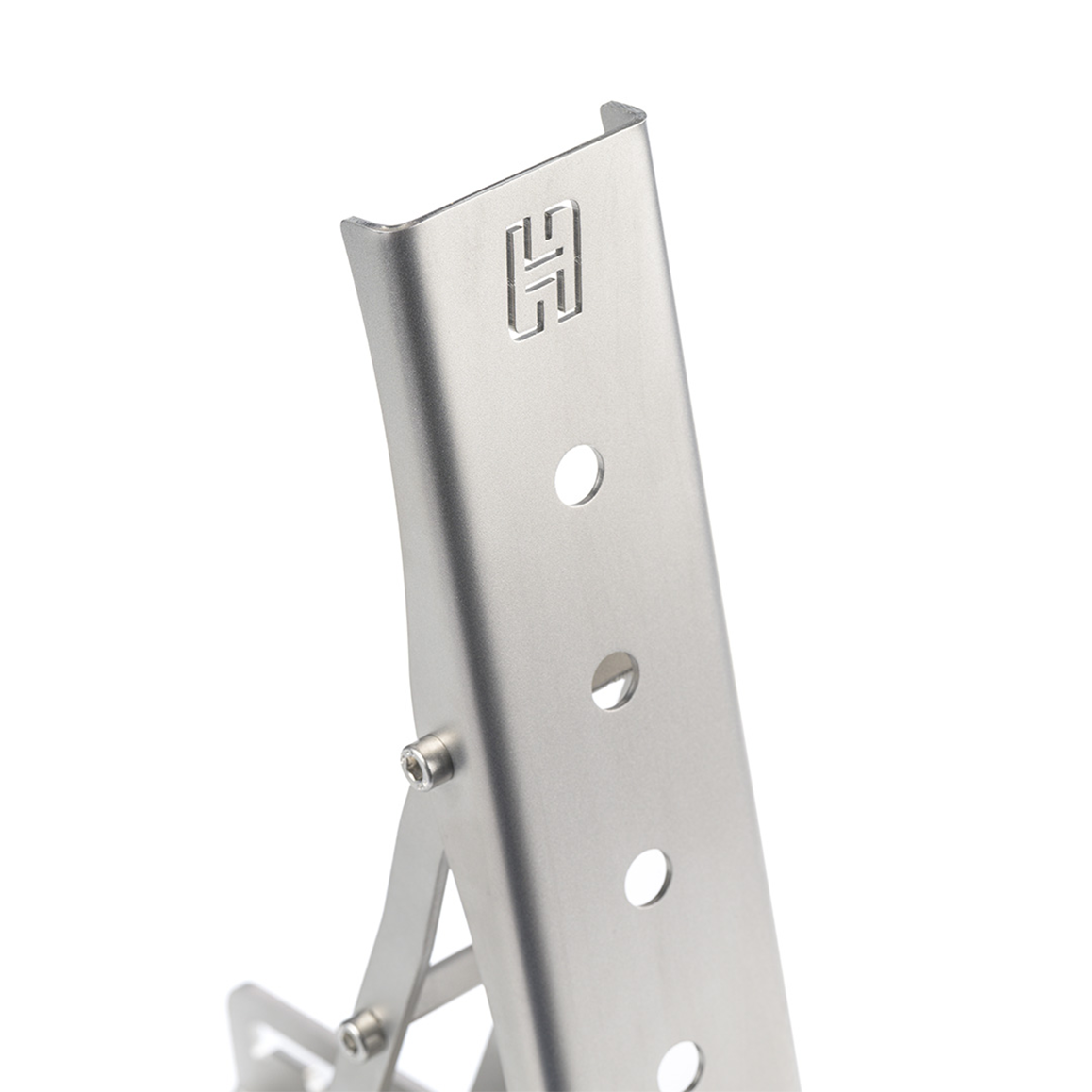

Heusinkveld Rest Pedal is highly adjustable, super strong and gives you comfort while driving. The Rest Pedal is made out of 4mm laser cut stainless steel, to make it extreme sturdy.
The double supports for the footplate ensure that you can actually brace yourself against the Rest Pedal, whether you want to climb out of your simulator or push yourself into your seat.
Adjustment options
You will be able to fully complement the ergonomics of your pedal set and get a lot of comfort during driving. The Rest Pedal can be adjusted in 2 ways:

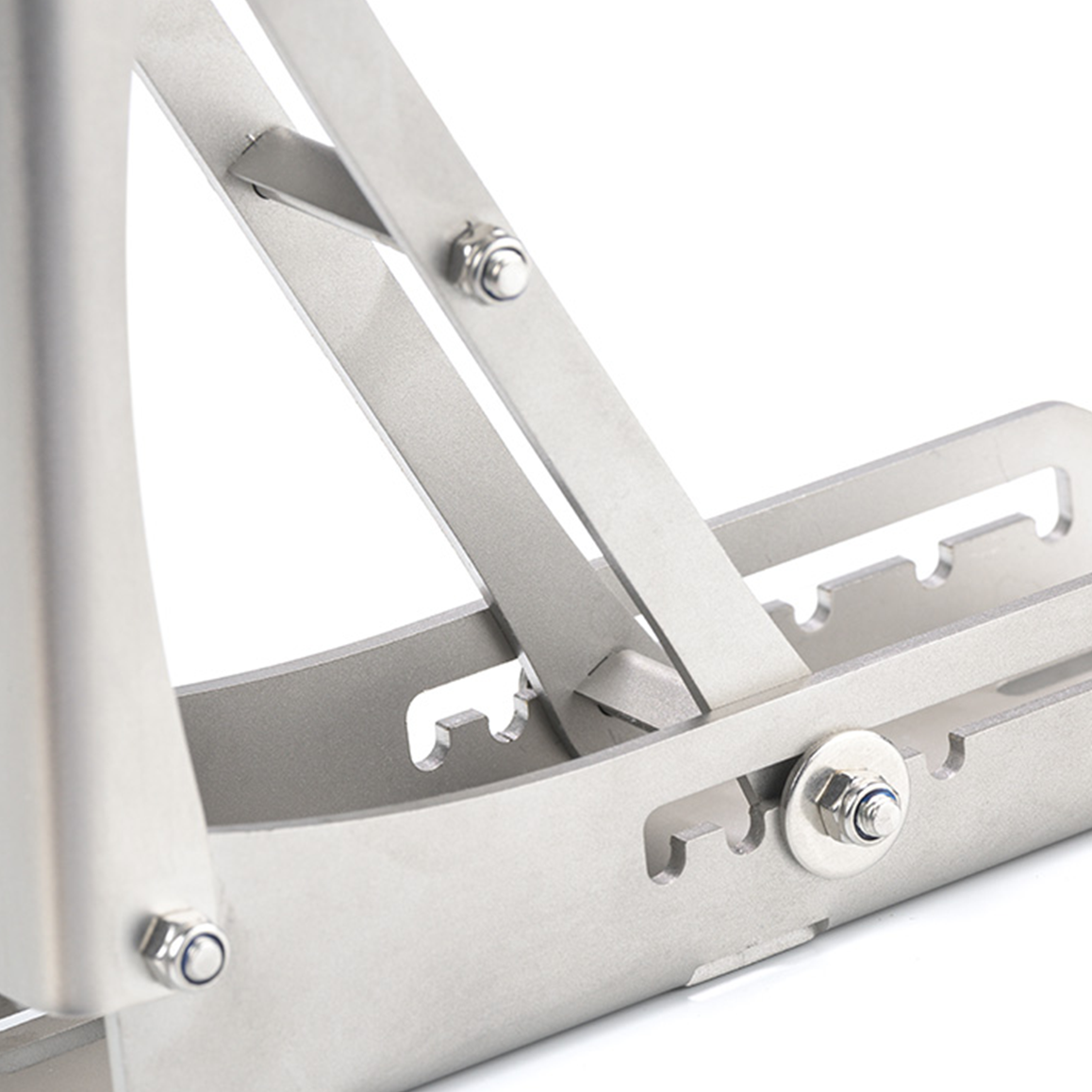

Angle adjustment (30 degrees) through 7 position adjustment slot.

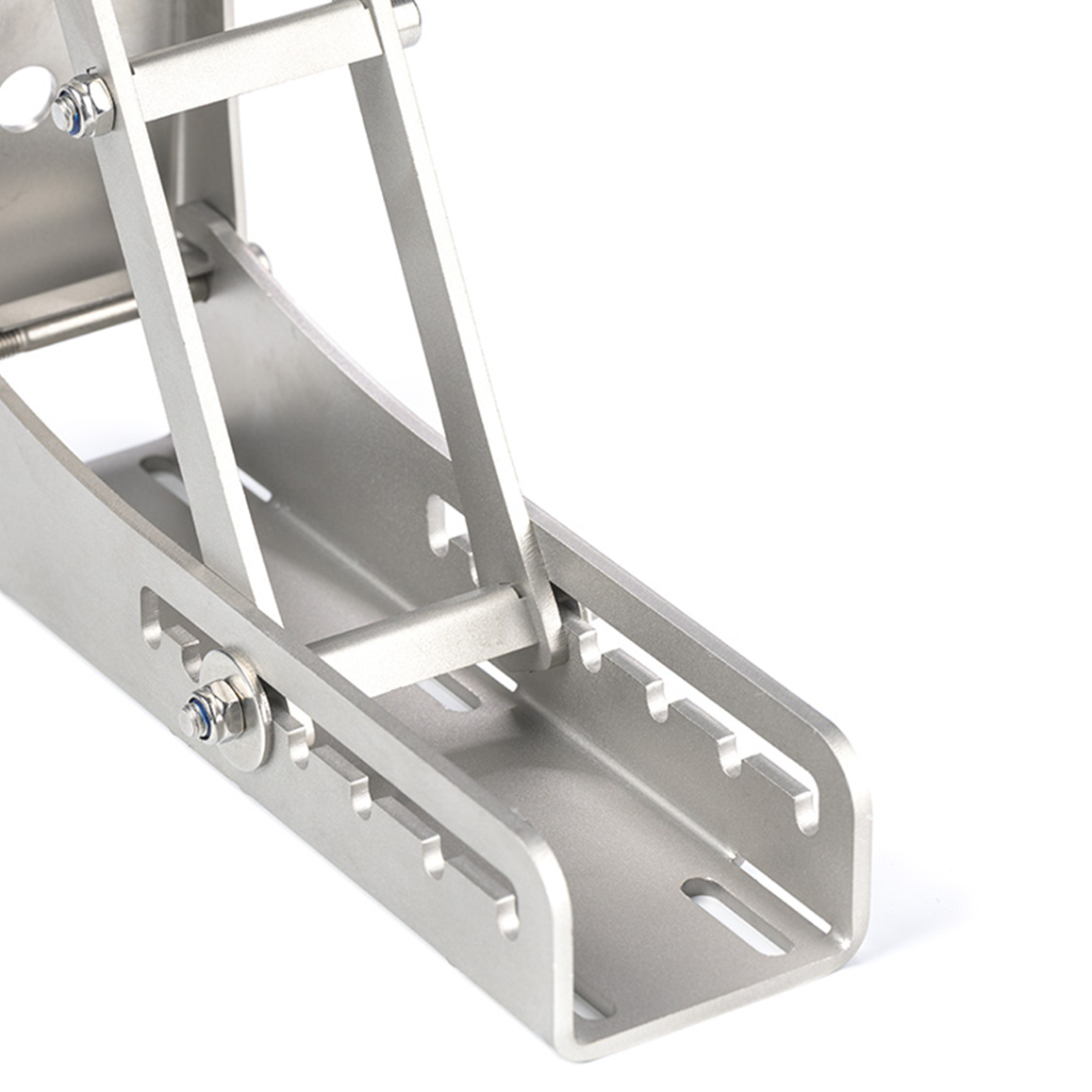

Longitudinal adjustment, move the complete Rest Pedal forward or backward.
RaceCenter pedals also retain the key Heusinkveld feature of adjustability.
Components
Heusinkveld RaceCenters 1-pedal set contains a clutch.
Clutch
The clutch pedal is identical in construction to the throttle pedal, it is fitted with an oversized loadcell which acts as a position sensor. The sensor is protected from abuse by a physical end stop and is unfazed by dust or dirt.
Mounting
RaceCenter pedals can be mounted with the included flanged M6 bolts (Torx 25) onto a very rigid base. Longer bolts are included for bases with different thicknesses.
Compatibility

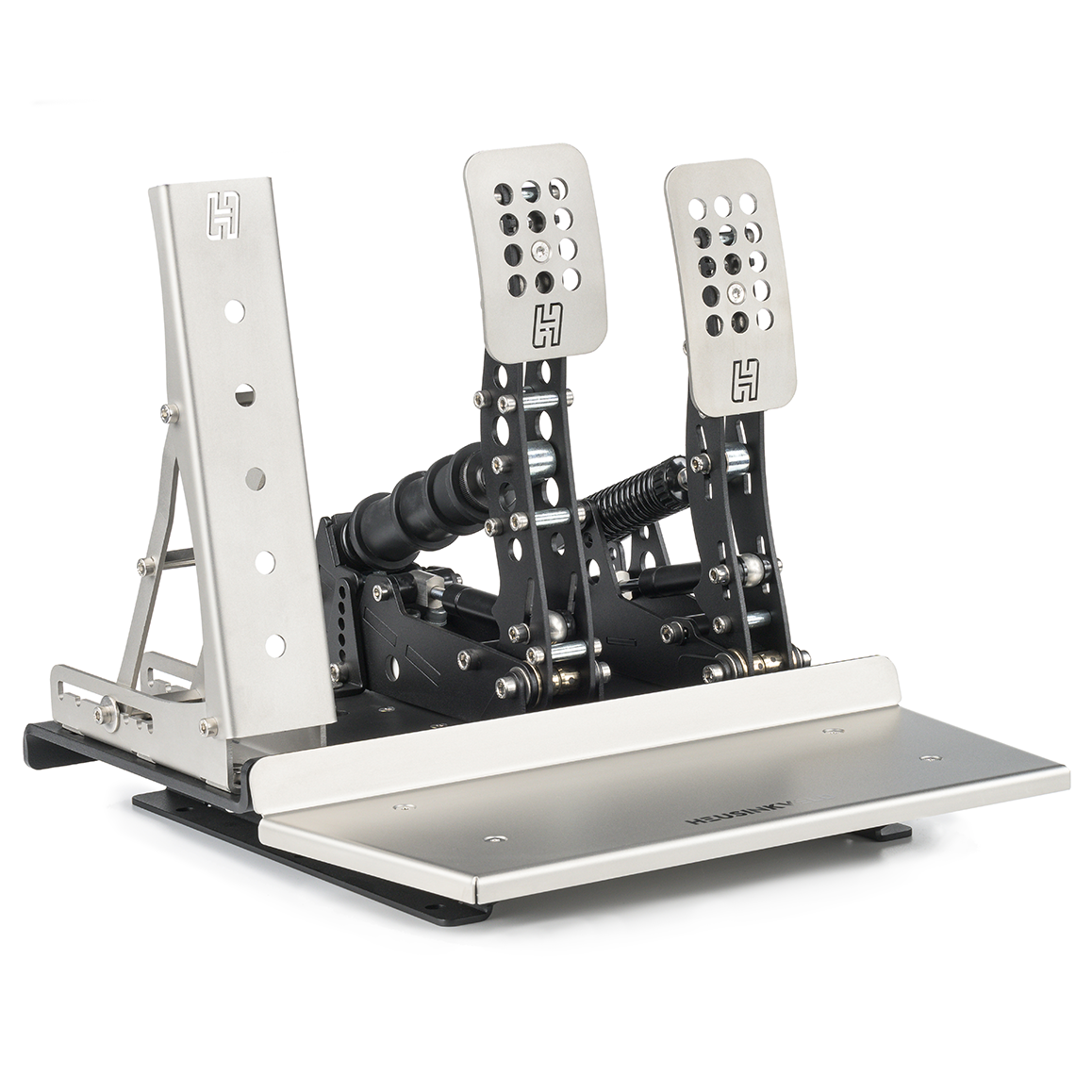

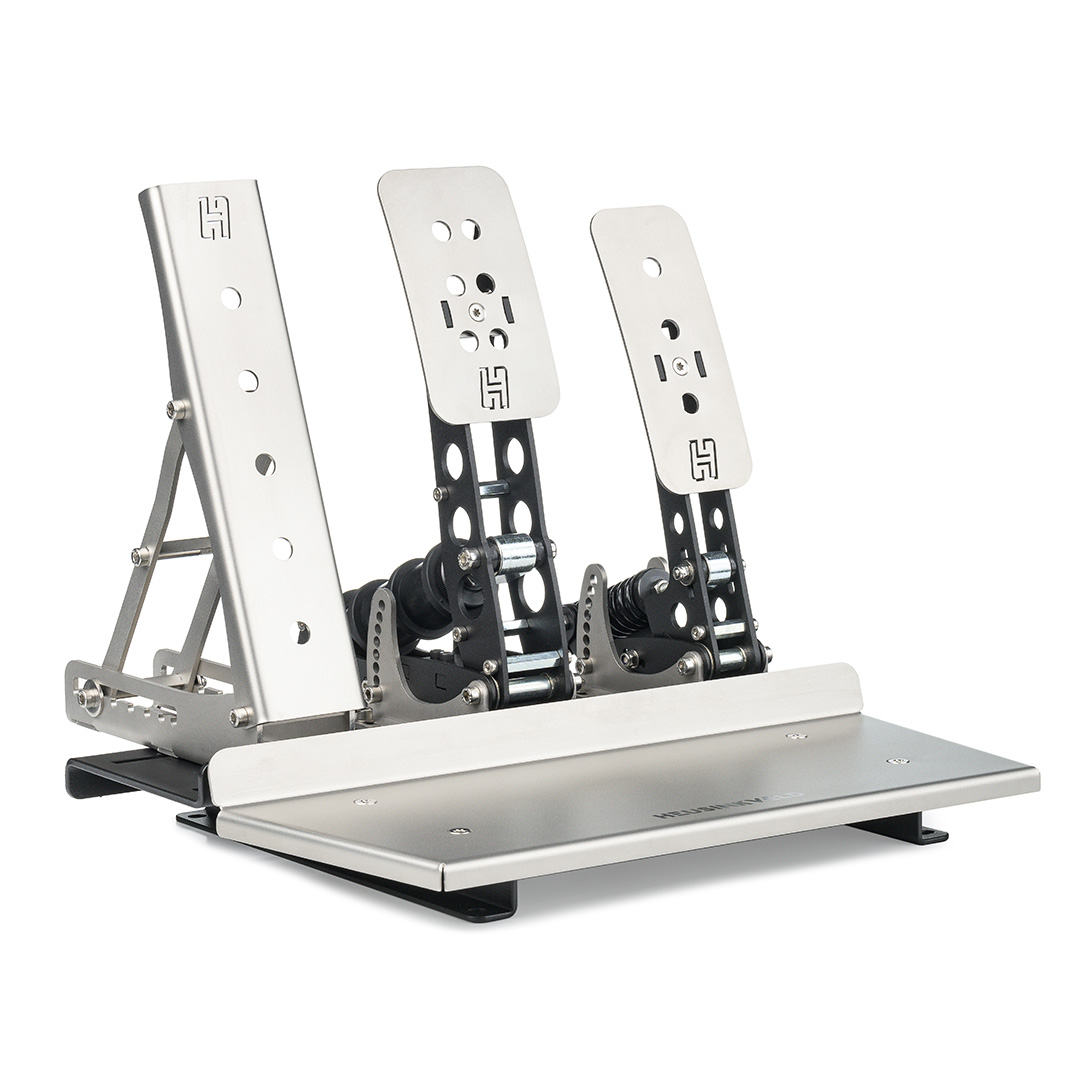

The Rest Pedal is compatible with Sprint 2-pedal sets and any Sprint Baseplate, as well as with Ultimate+ 2-pedal sets and any Ultimate Baseplate. It is not possible to mount a 3-pedal set with the Rest Pedal on a Baseplate.
If you want to mount the rest pedal on a third part rig or third party baseplate, make sure to check the schematics of the third party supplier.
The mounting pattern of the Rest Pedal matches Heusinkveld Sprint and Ultimate pedals. An additional mounting pattern is provided for mounting onto an aluminium profile. Various bolts, nuts and T-nuts are provided with the Rest Pedal to assist with the installation.
| Spec | Details |
|---|---|
| Compatibility | Compatible with any rig which accepts bolts and/or t-nuts. When using a Sprint or Ultimate+ Baseplate, only in combination with 2-pedal sets. |
| Controller | N/A |
| Dimensions | 370x130x72mm |
| Material | 4mm bead blasted laser cut stainless steel |
| Weight | 1.27 kg |
| In the box | Rest pedal, adjustment tools, mounting materials, manual |
| Packaging | Eco-Friendly Packaging |
| Warranty | 2 years |
