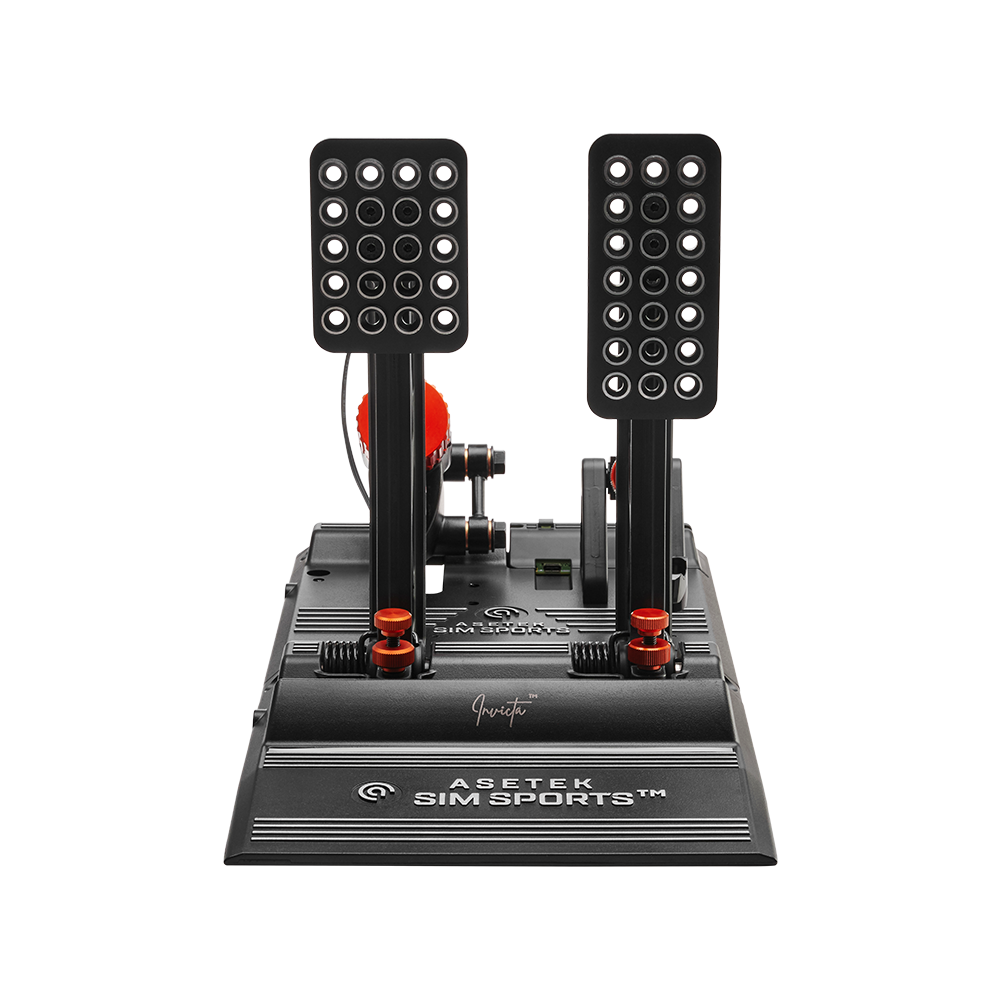

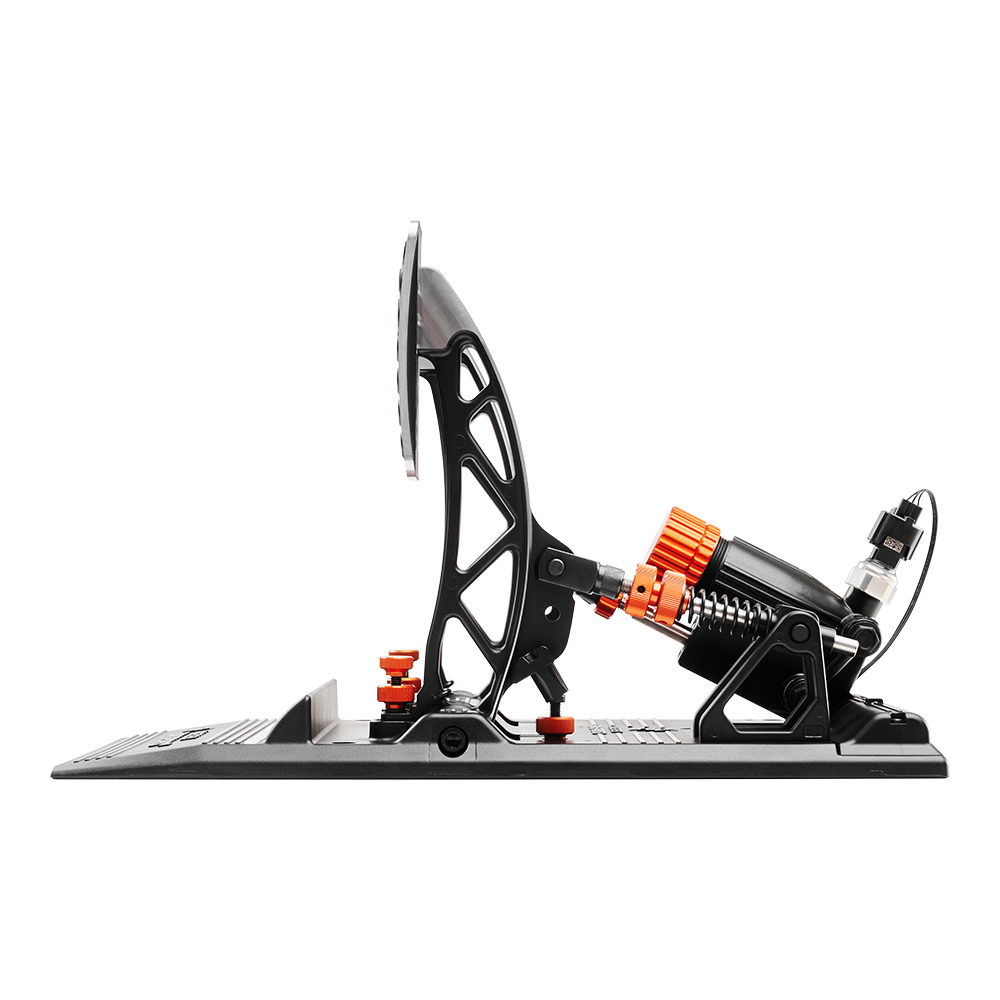

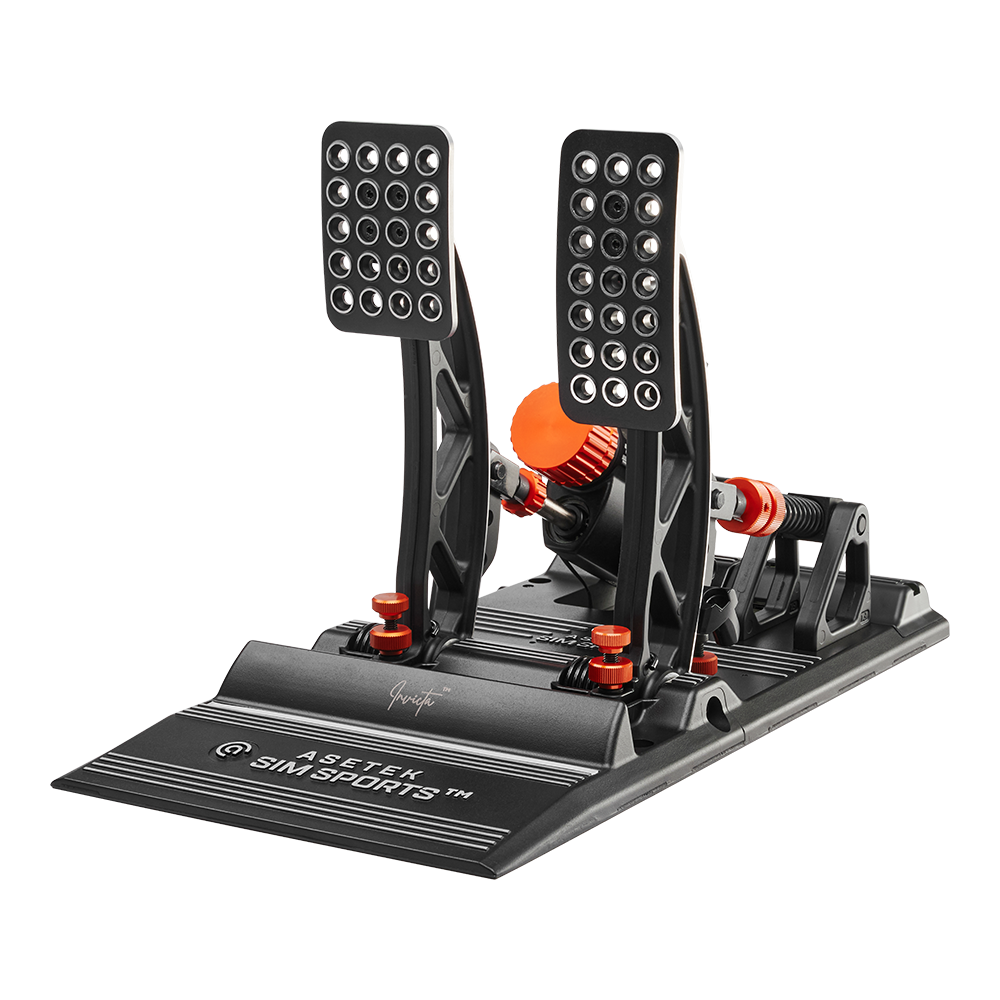

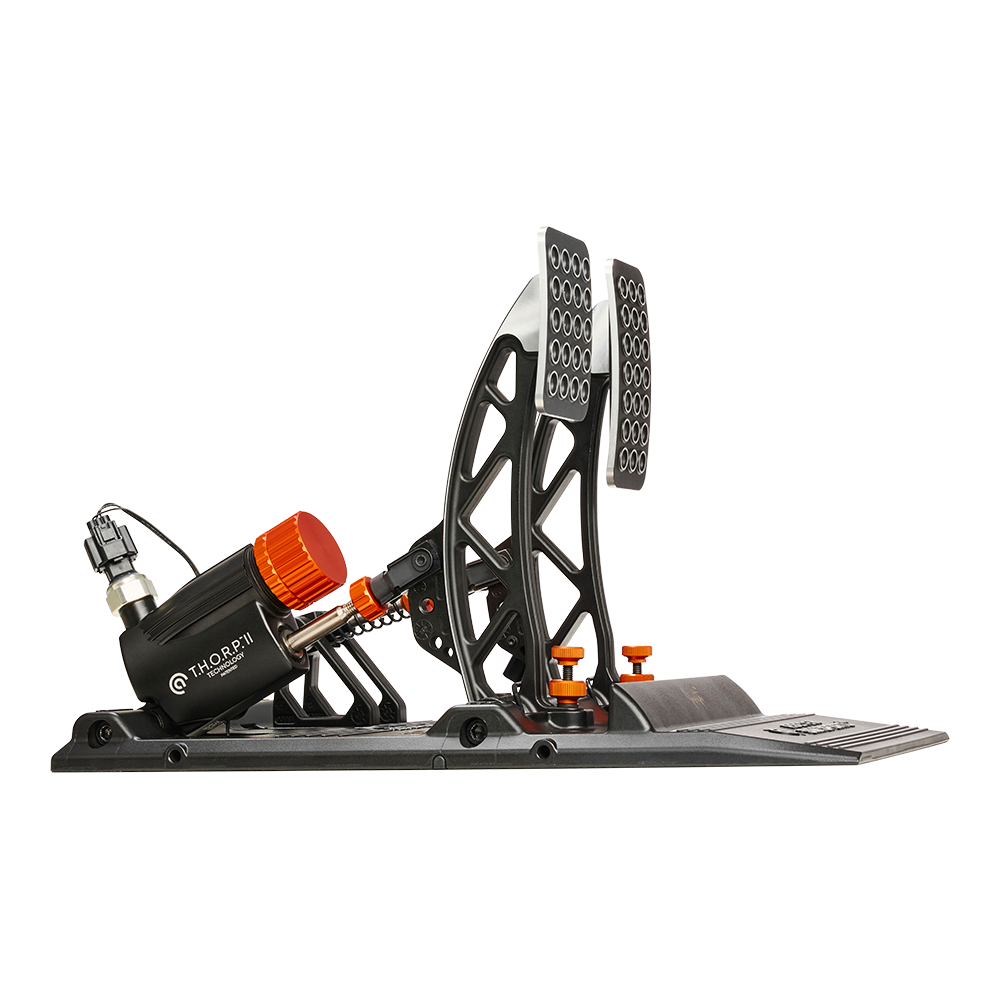

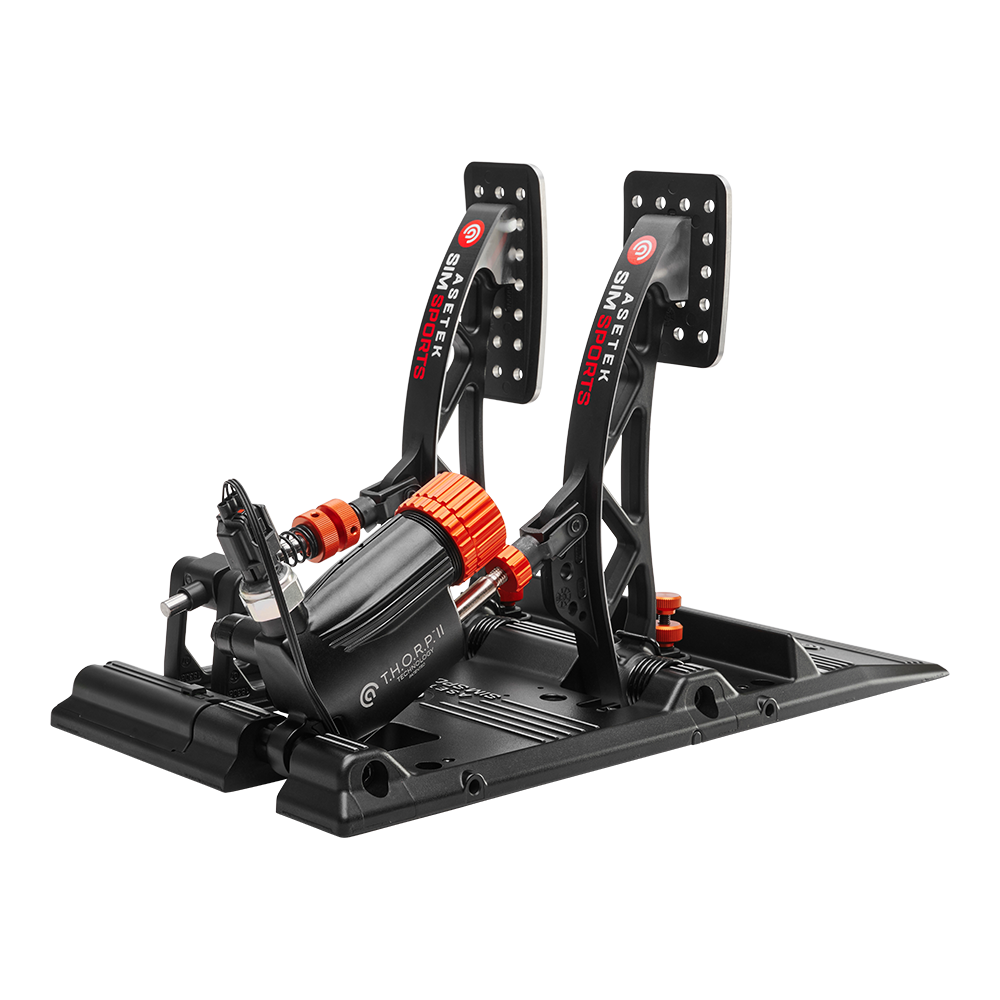

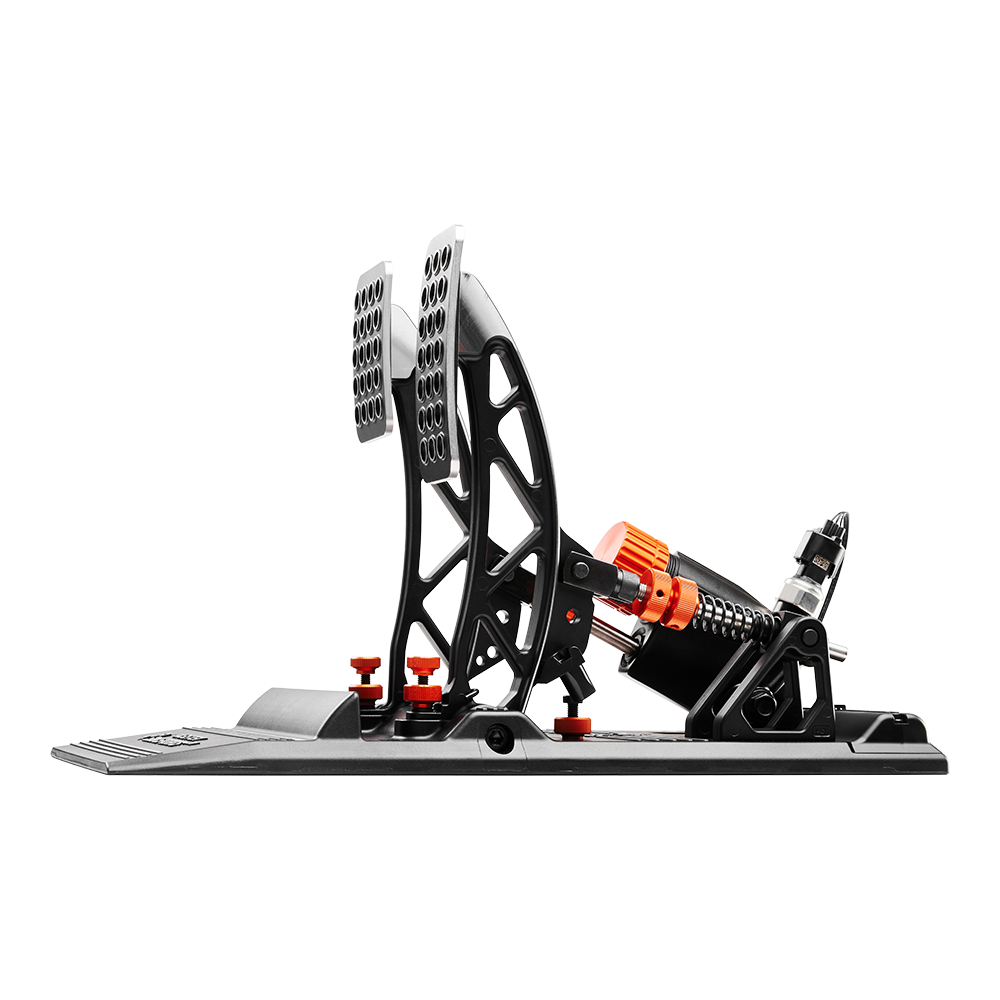

Asetek SimSports Invicta Pedals T.H.O.R.P. II

Experience more than a simulation with the Invicta Pedals T.H.O.R.P. II.

Equipped with the groundbreaking T.H.O.R.P. II hydraulic brake system, these pedals deliver an authentic race car braking feel while offering a wider range of adjustability that provides the possibility for up to 40% longer travel as well as reaching the 2nd second stage with less force applied.

The hydraulic brake system also enables immersive trail braking, providing precise control and seamless modulation for an authentic braking sensation.

And by accurately simulating real brake pressure and fluid dynamics, it delivers a consistent braking feel, helping you build and refine muscle memory.

All adjustable parts are colored orange for quick and tool-free customization.

BRAKE HOW YOU LIKE IT.

The T.H.O.R.P. II is based on the same principles as its predecessor – simulating the authentic feel of a race car brake.

The difference is that the T.H.O.R.P. II offers more flexibility, letting you customize both brake pressure and travel distance even more for a more personalized experience.

Additionally, adjustments are now made from the front, providing easier access for quick customizations.



General specifications

·               Exquisite, radical, and minimalistic industrial Danish design.

·               Adjustable pedal stops

·               Adjustable travel settings

·               All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces.

·               Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software

·               Adjustable pedal plates that can be moved along the x- and y-axis

·               Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will remain saved for every simulator/game (You do need to set 0 and 100% value in the game).

·               Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization

·               Each pedal can be calibrated through the intuitive and easy to use RaceHub software

·               Pedal upper and lower dead zones can be set through the RaceHub software

·               All adjustable mechanical features are by default colored orange

·               Inhouse developed electronics with 16-bit resolution and automotive-grade pressure sensor

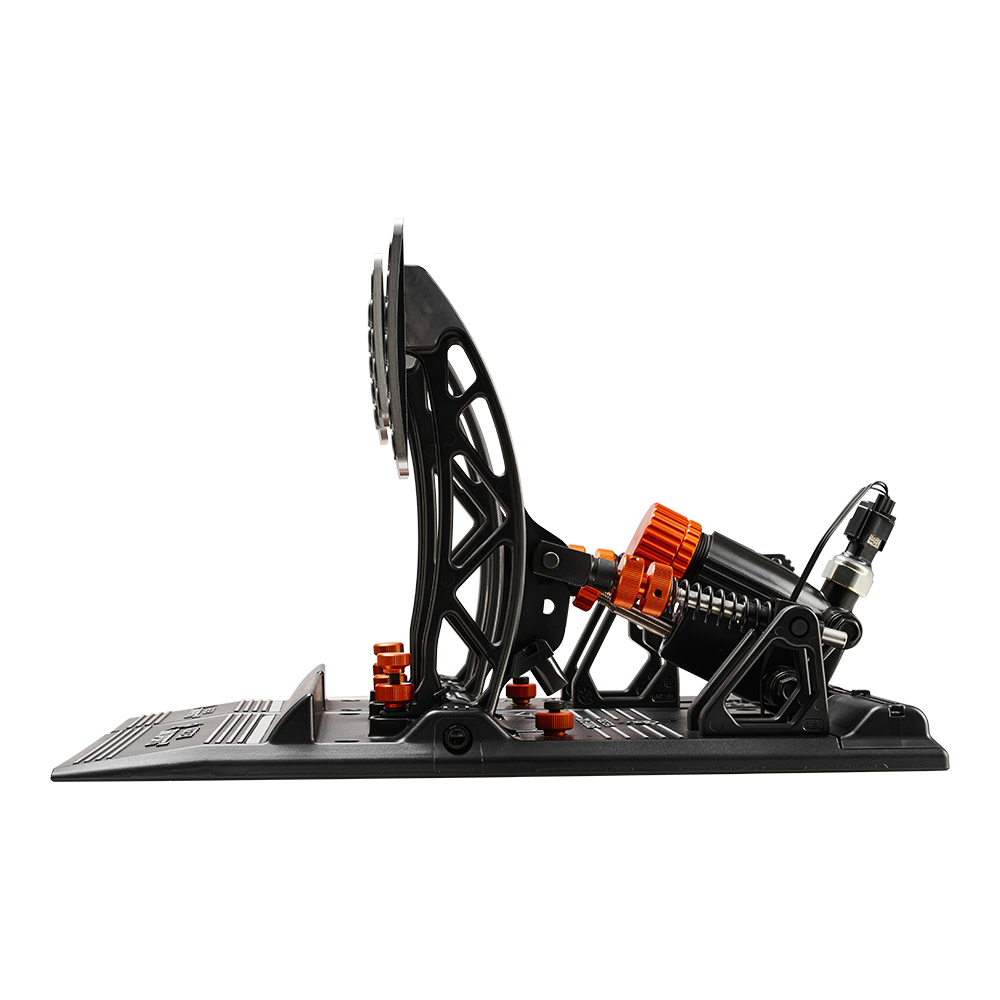

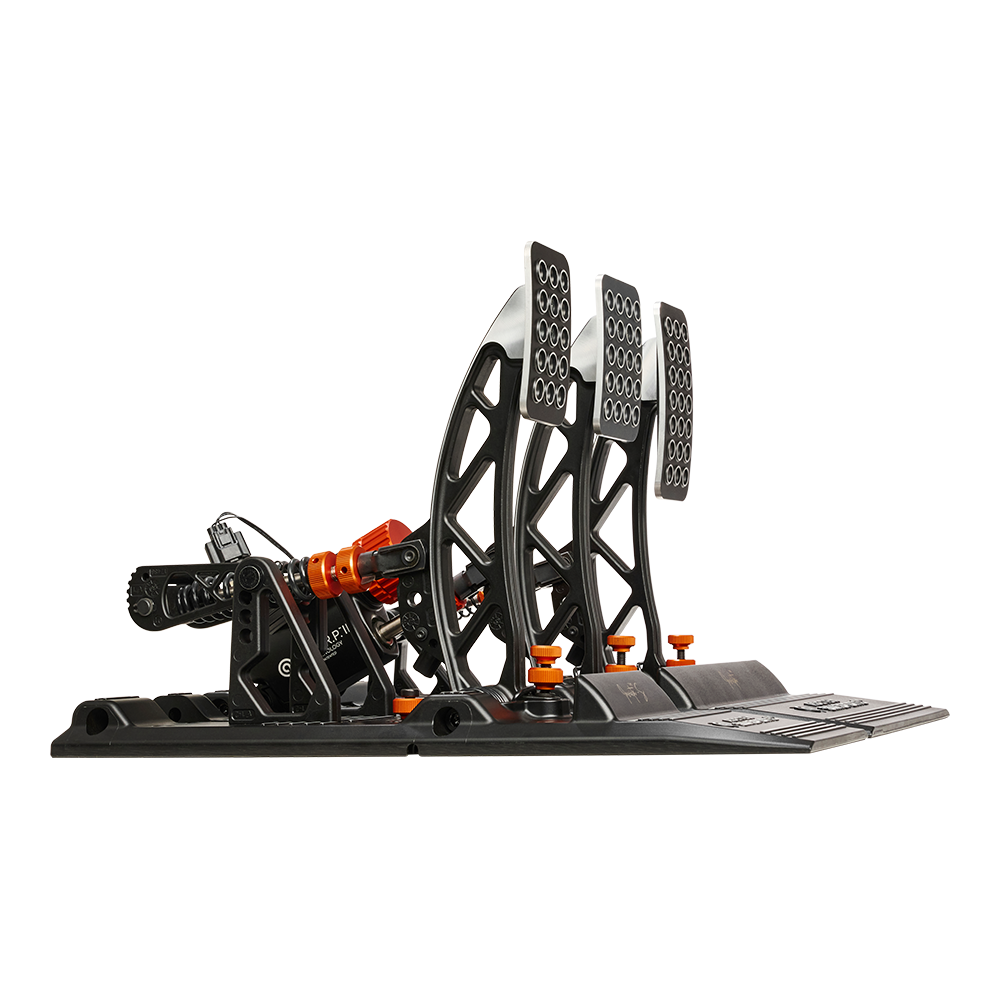

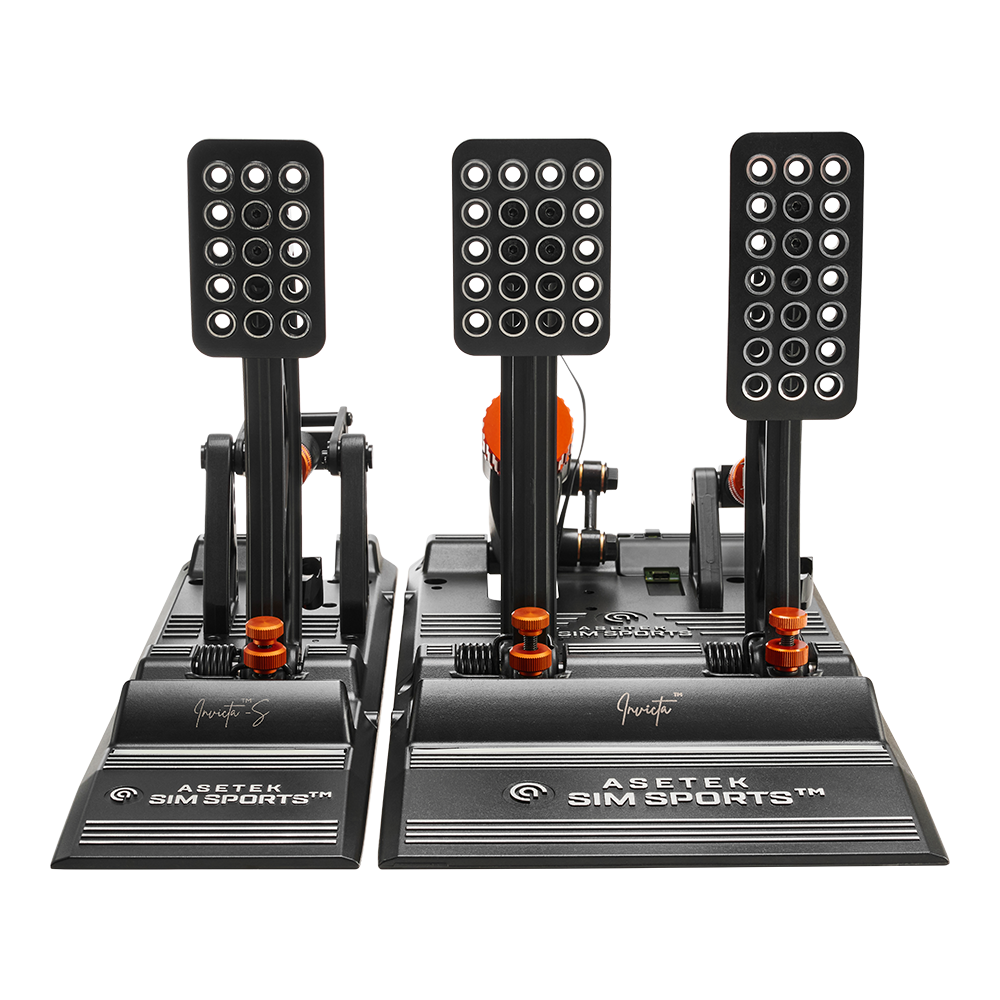

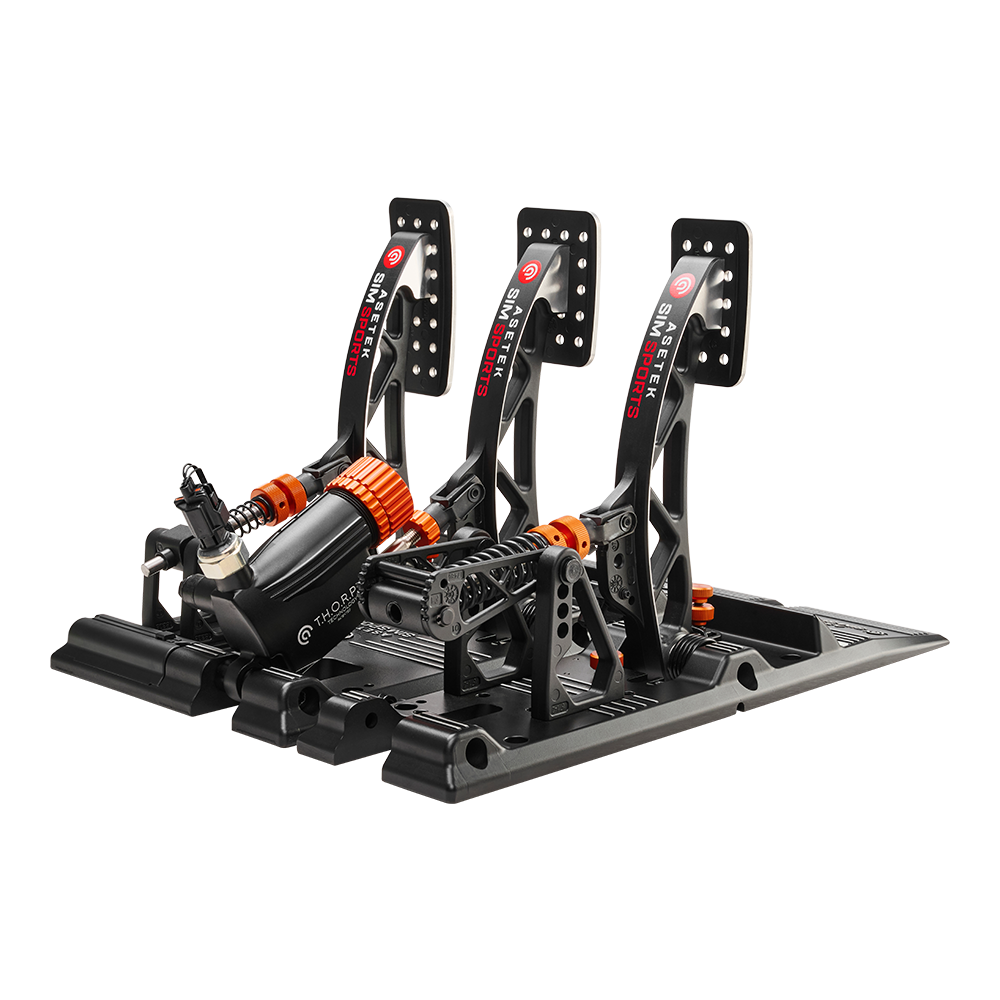

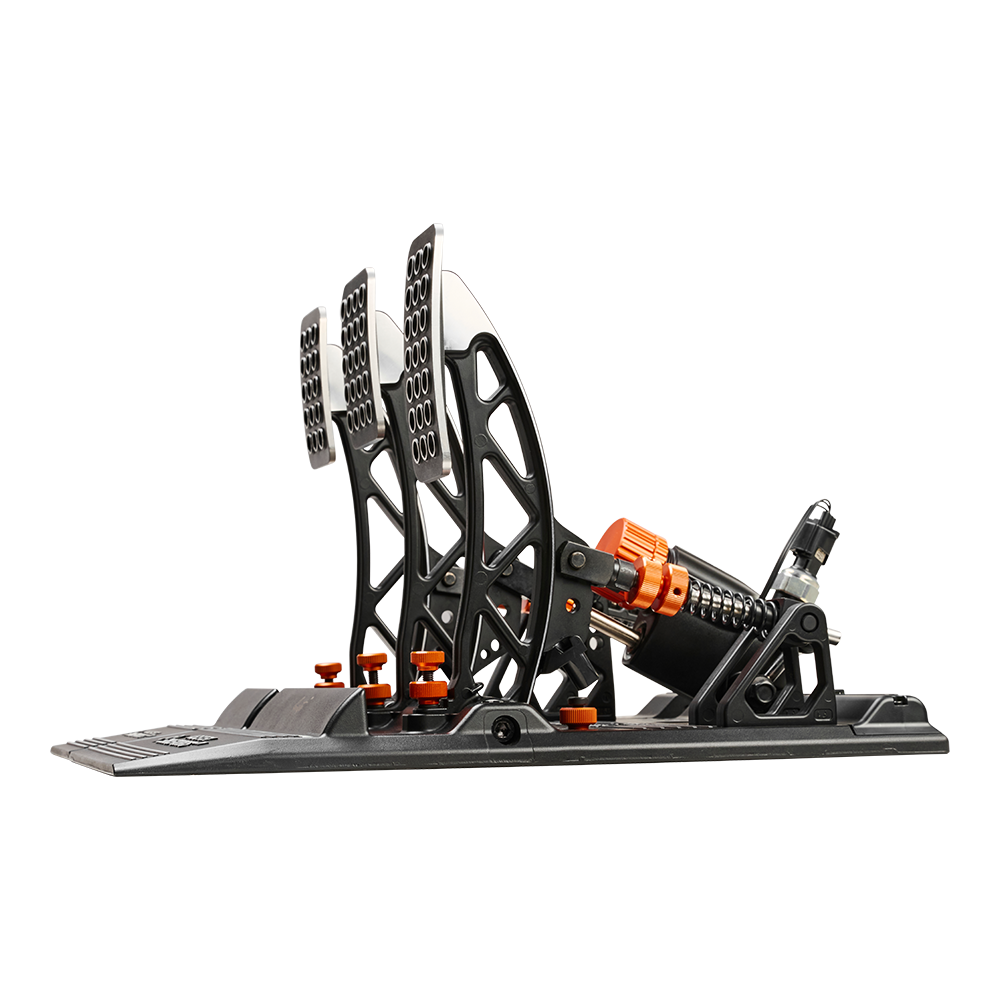

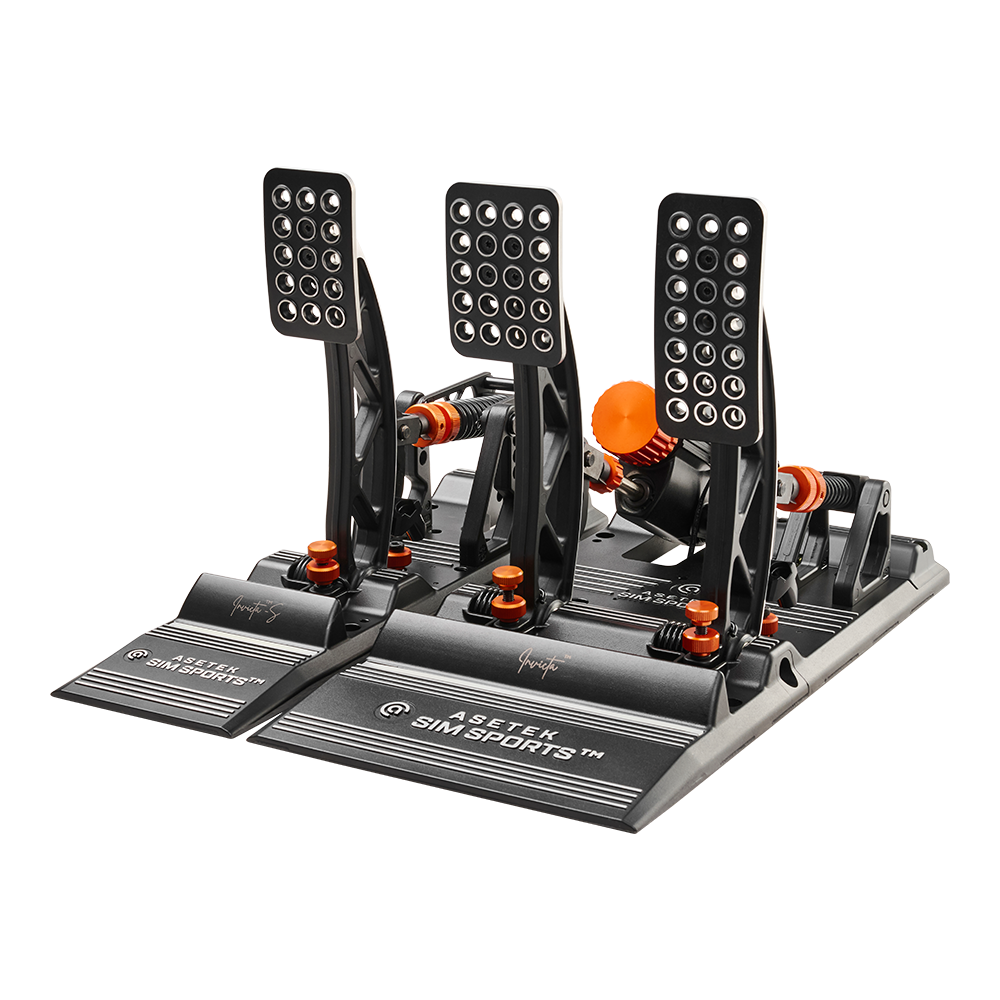

·               Easy to add clutch pedal to the Throttle & Brake combo

·               Designed and tested to 1,000,000 activations, which far exceeds any race car specification

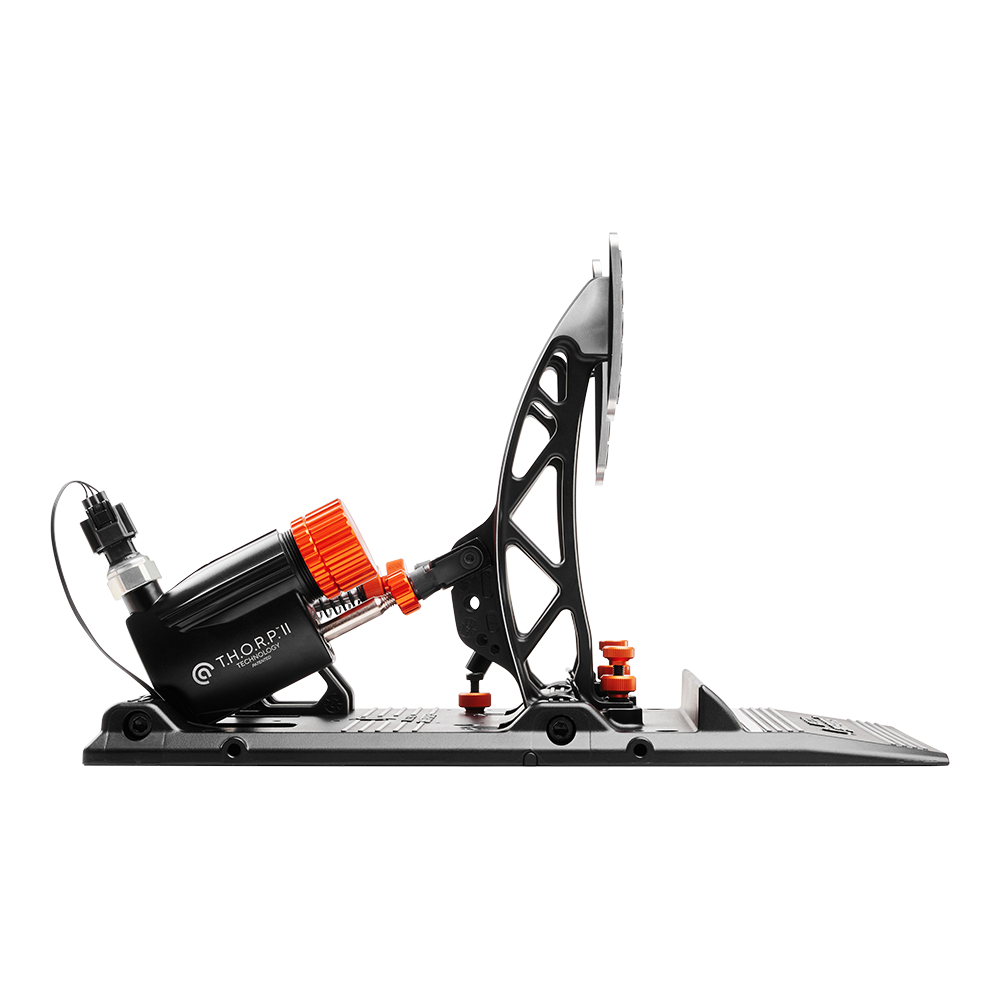

Brake System

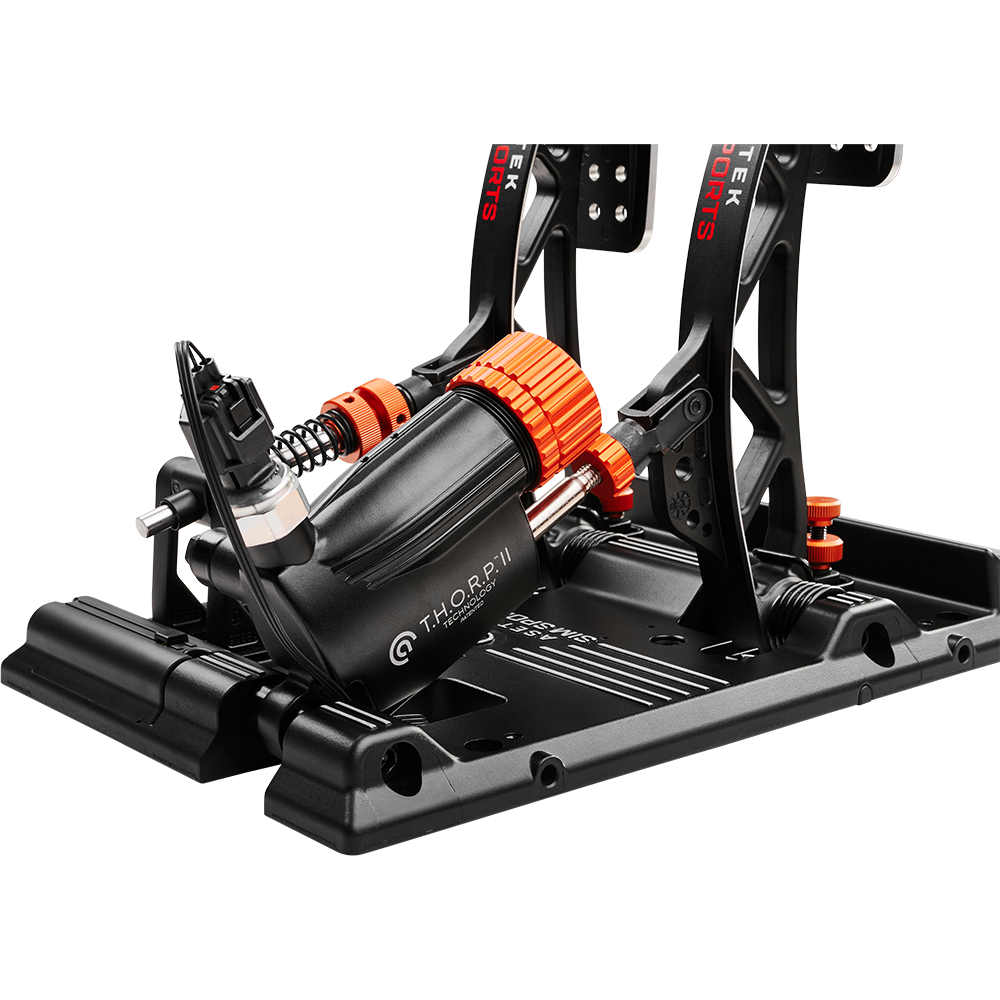

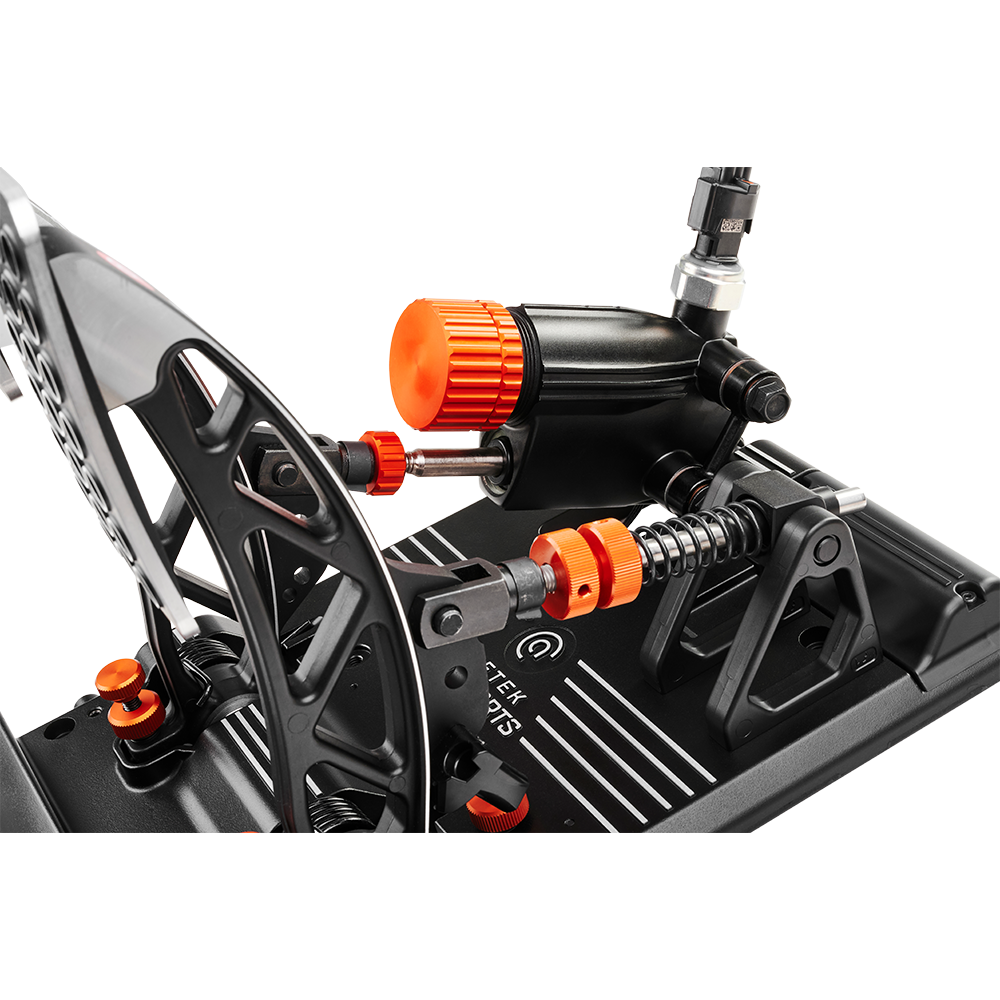

·               The T.H.O.R.P. (Twin Hydraulic Opposing Rapid Pistons) patent-pending hydraulic brake cylinder gives the you the ultimate experience of driving a real racecar

·               Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.

·               Automotive-grade pressure sensor

·               The inhouse designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.

·               Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect racecar feel as well as not overloading the elastomer

·               Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance

·               Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)

·               100 bar of pressure equals 180 kg of force on the face of the pedal plate

·               Hydraulic Brake Cylinder made from forged aluminum

·               Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

Throttle System

·               Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point. Sustainable manufacturing with 100% on-site re-use of waste material

·               16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance

·               Custom throttle curves can be adjusted and 100% customized in the RaceHub Software to mimic real racecar butterfly opening. For example a linear curve in dry conditions and a progressive in wet conditions

·               Adjustable pedal hardness, travel and stop

·               Interchangeable spring for bigger step in pedal hardness

·               Pedal arm is designed for 200 kg of force and a burst pressure of up to 700 kg!

Dimensions

·               Depth, width, and height: 457 mm x 212 mm x 256 mm

·               Weight: 3 kg
