Fanatec ClubSport DD (12Nm) Wheelbase
Fulfillment within 3 business days.
Seasonal demand may extend delivery times.
Fanatec ClubSport DD (12Nm) Wheelbase
The ClubSport DD delivers 12 Nm of consistent torque with incredible responsiveness and dynamics. An optimized skew angle on the rotor magnets and patented FluxBarrier technology increases efficiency and smoothness. The aluminum shaft inside the motor is the strongest we’ve ever made. Engineered to meet strict cooling requirements, the efficient motor and thermally optimized layout holds a genuine 12 Nm torque even in the most extreme conditions. Class-leading slew rate performance allows FullForce technology to generate high-frequency vibrations for a new level of immersive effects. ClubSport DD is our most advanced ClubSport base ever.
Product Features
12 Nm Direct Drive servo motor
FullForce technology for low-latency detail effects
Passive cooling with consistent performance in all conditions

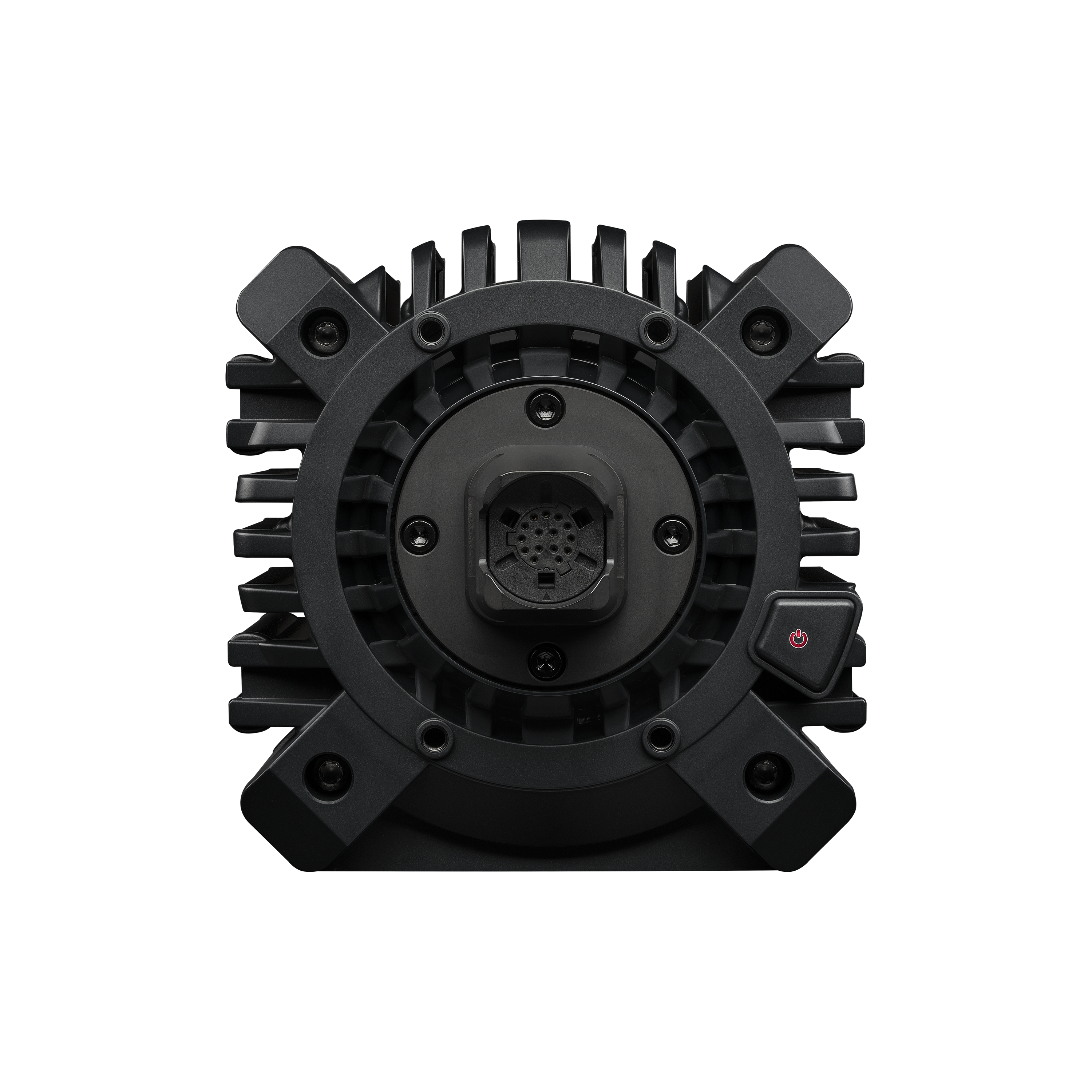

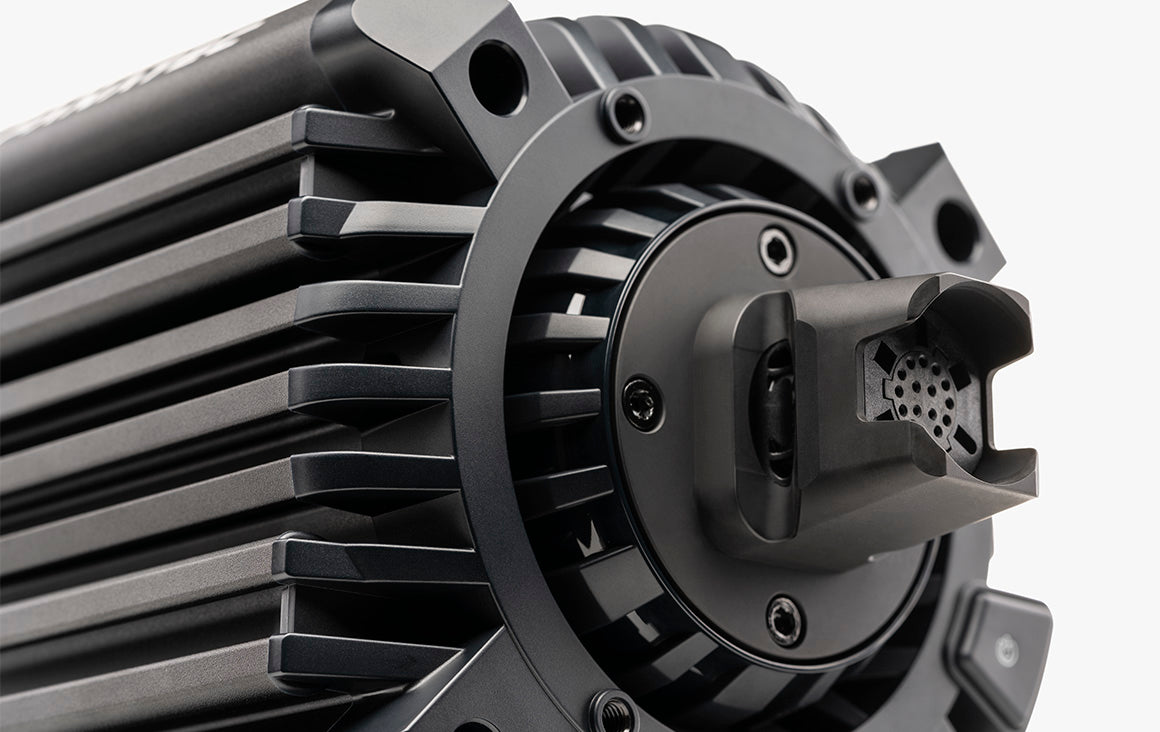

Motorsport-derived QR2 quick release system
Designed for Windows PC (Xbox possible when fitted with Xbox licensed wheel)
Standard and Advanced Tuning Menus for beginners and enthusiasts
High-resolution (contactless) Hall-position-sensor ensures pinpoint steering accuracy
T-nut rail system for easy mounting
Specifications
| Force Feedback drive system | Direct Drive |
| Torque | 12Nm consistent |
| Degree of rotation | Up to 2520° |
| Cooling system | Passive (fanless) |
| Quick Release | Fanatec QR2 Base Side |

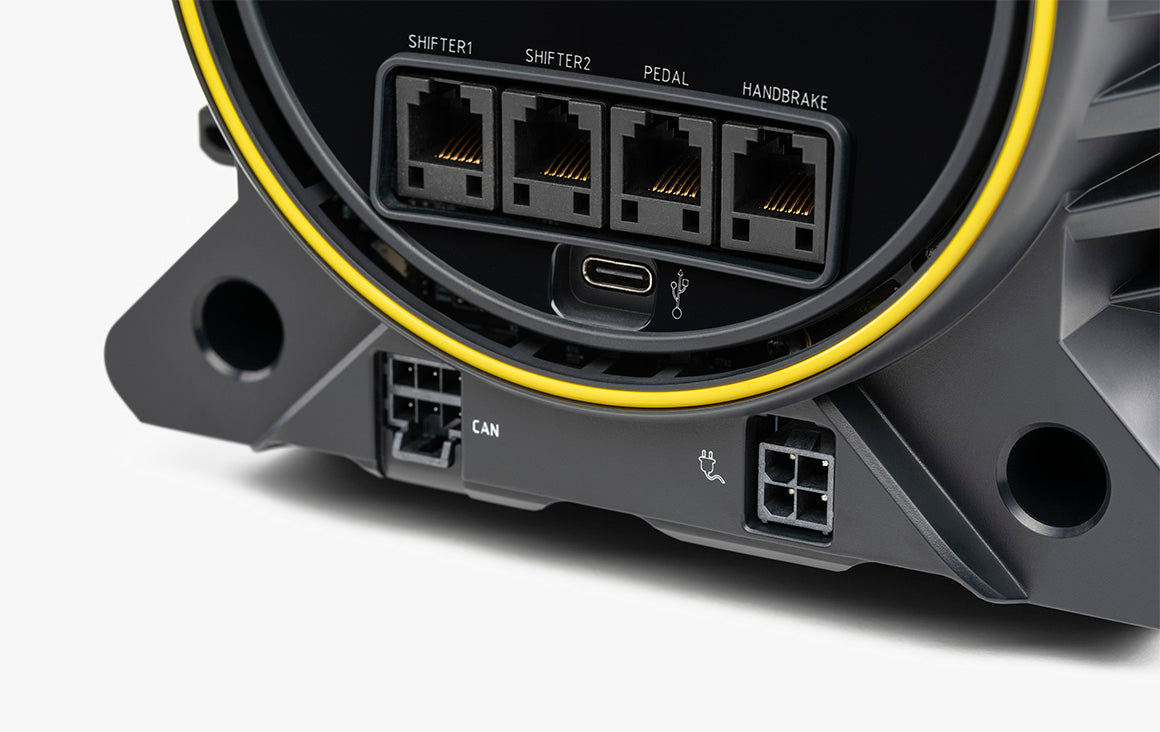

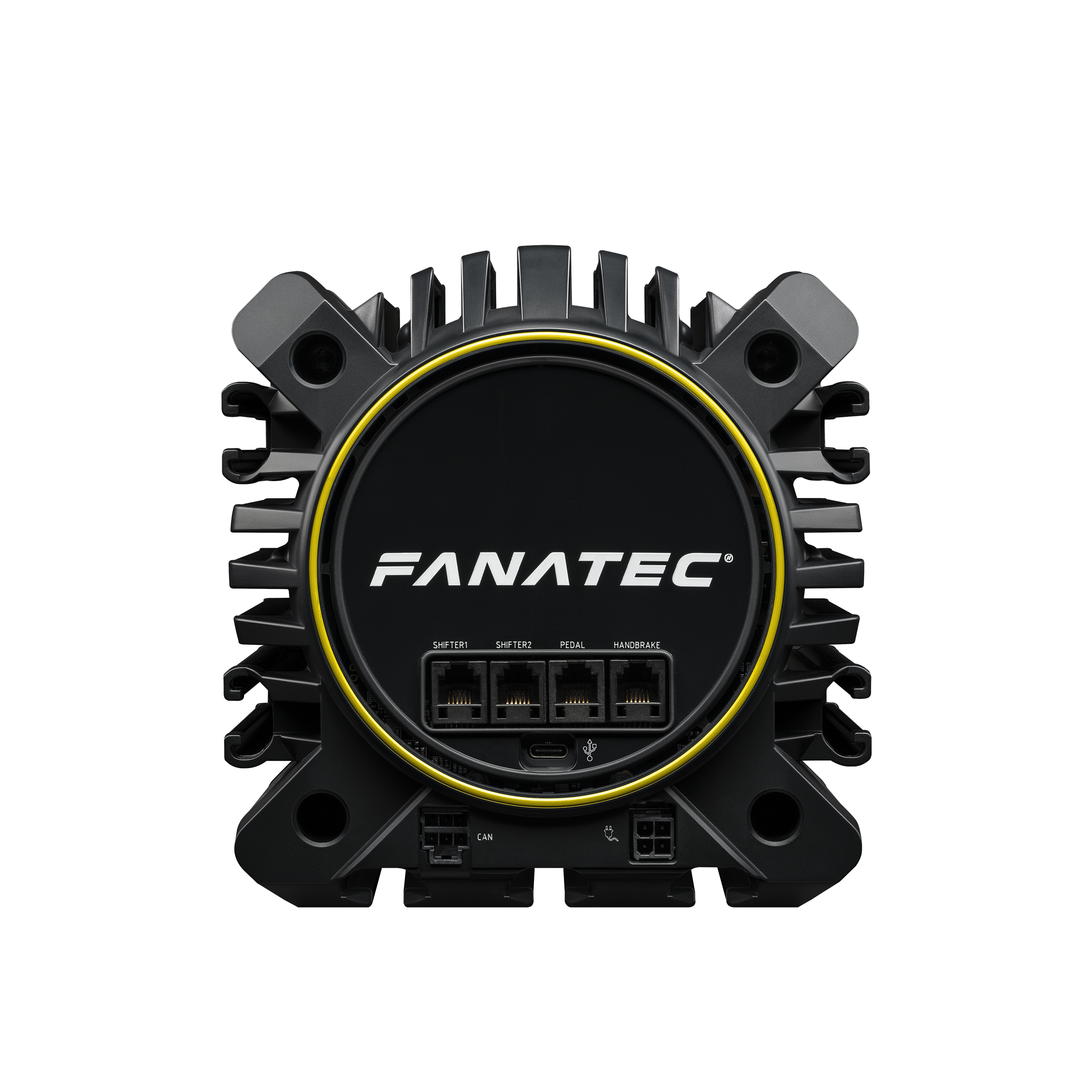

| Ports | Power Supply USB-C Shifter 1 Shifter 2 Pedals Handbrake CAN |
| Product Dimensions | 248(L) x 160(W) x 163,5(H) mm |
| Product Weight | 10,6 kg |
| Warranty | Three Years - Local country regulations are applicable |
Package Content
ClubSport DD
QR2 Base-Side (Type-F) preinstalled
Power Supply (regional)
4x T-nuts for rail mount system
USB cable (Type-C to Type-A)
Quick Guide
