Fanatec CSL DD QR2 (8 Nm) Wheelbase
Fulfillment within 3 business days.
Seasonal demand may extend delivery times.
Fanatec CSL DD QR2 (8 Nm) Wheelbase

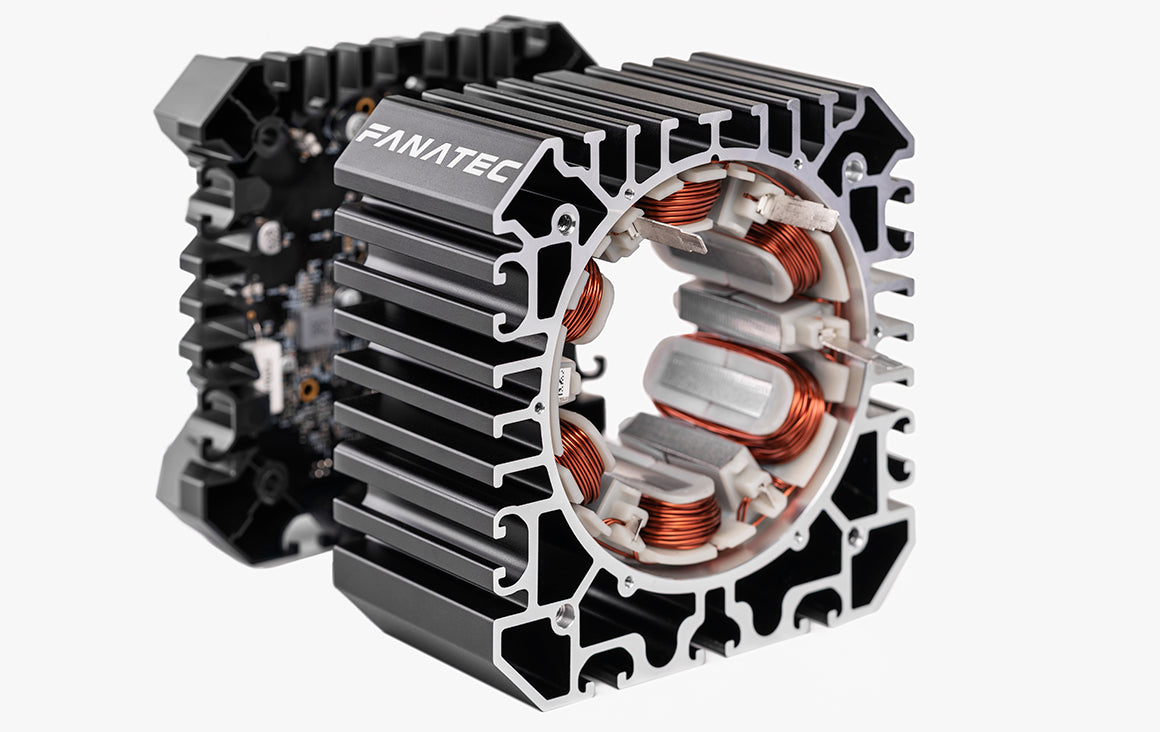

Push the limits using this exceptional Direct Drive base in a compact design. Now including QR2, you'll enjoy even more precision and detailed force feedback. The included Boost Kit 180 unlocks 8 Nm torque. When the steering wheel is directly mounted to the motor shaft, there’s no belt or gear drive to dilute the force feedback effects. The 100% custom motor was developed in Germany specifically for sim racing. It delivers sensational performance thanks to patented FluxBarrier technology, communicating the nuances of force feedback detail to your hands with remarkable clarity.
Product Features
8 Nm Direct Drive servo motor (Boost Kit 180 included)
Passive cooling with consistent performance in all conditions

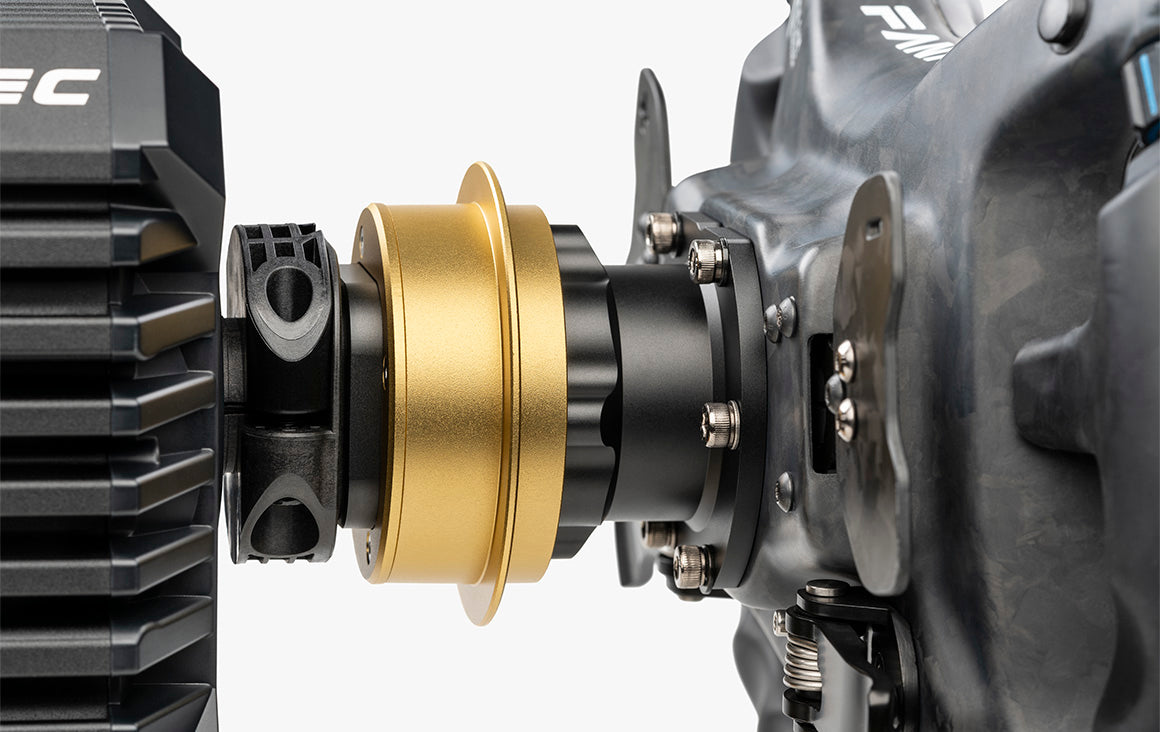

Motorsport-derived QR2 quick release system
Designed for Windows PC (Xbox possible when fitted with Xbox licensed wheel)
Standard and Advanced Tuning Menus for beginners and enthusiasts
High-resolution (contactless) Hall-position-sensor ensures pinpoint steering accuracy
T-nut rail system for easy mounting
Specifications
| Force Feedback drive system | Direct Drive |
| Torque | 8Nm peak |
| Degree of rotation | Up to 2520° |
| Cooling system | Passive (fanless) |

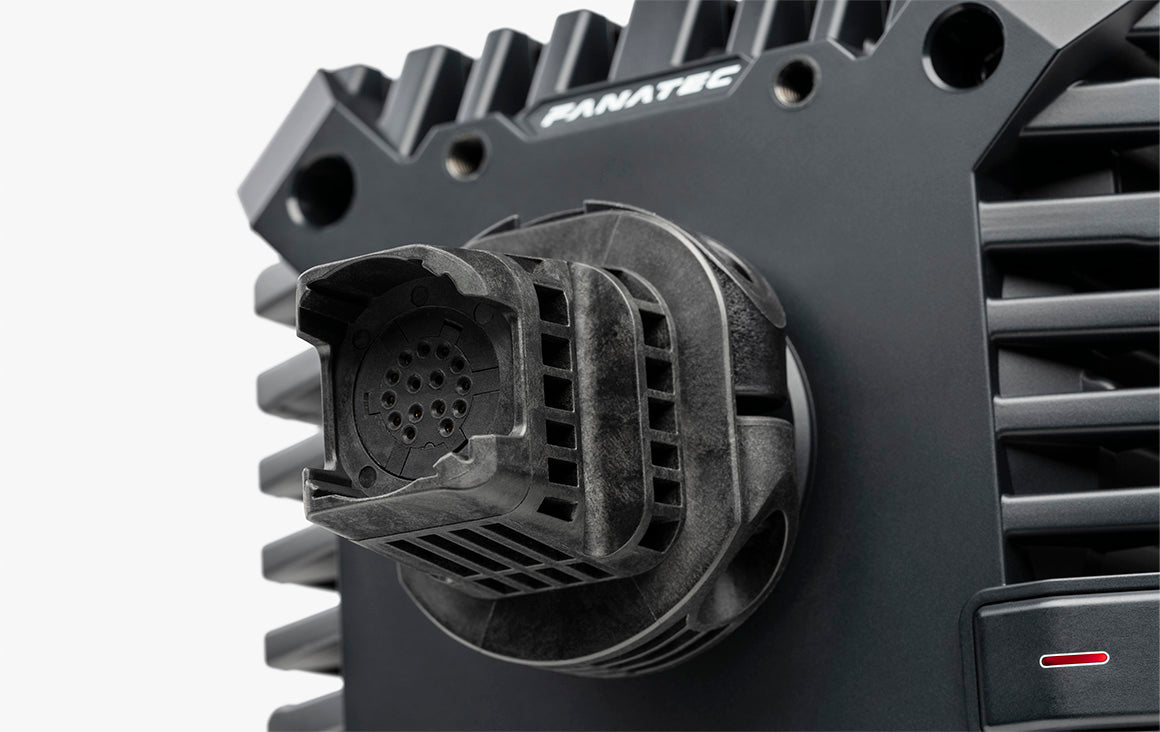

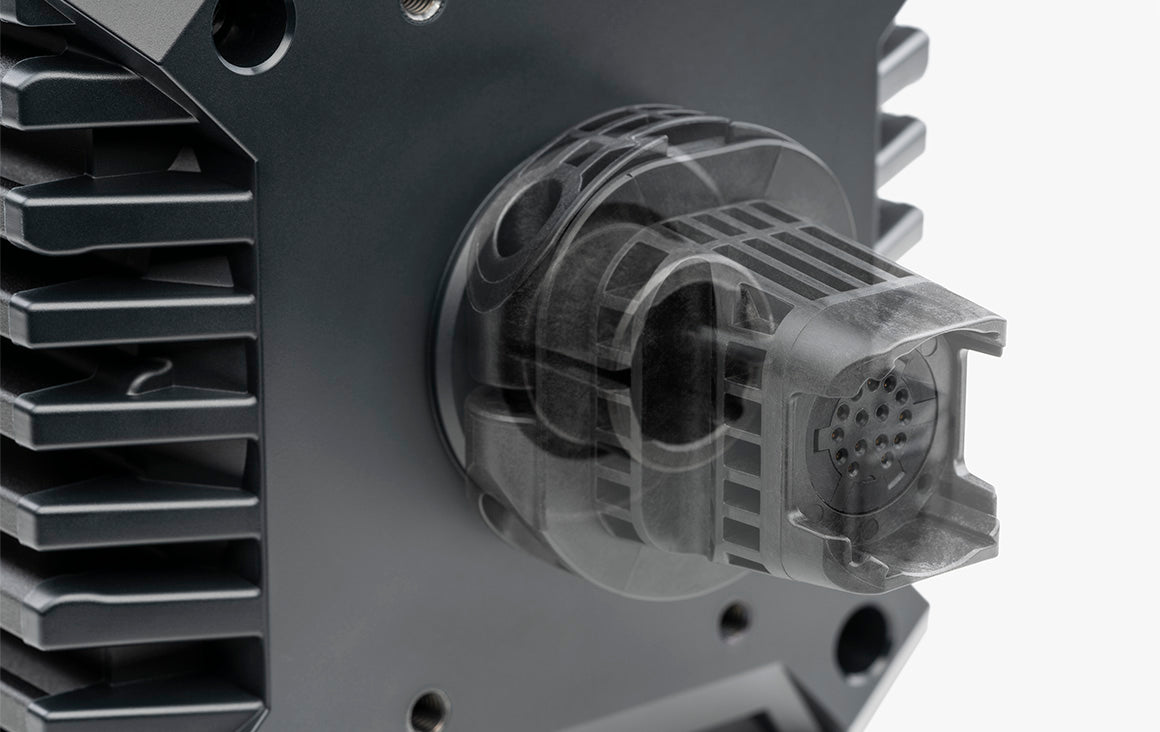

| Quick Release | Fanatec QR2 Lite Base-Side |

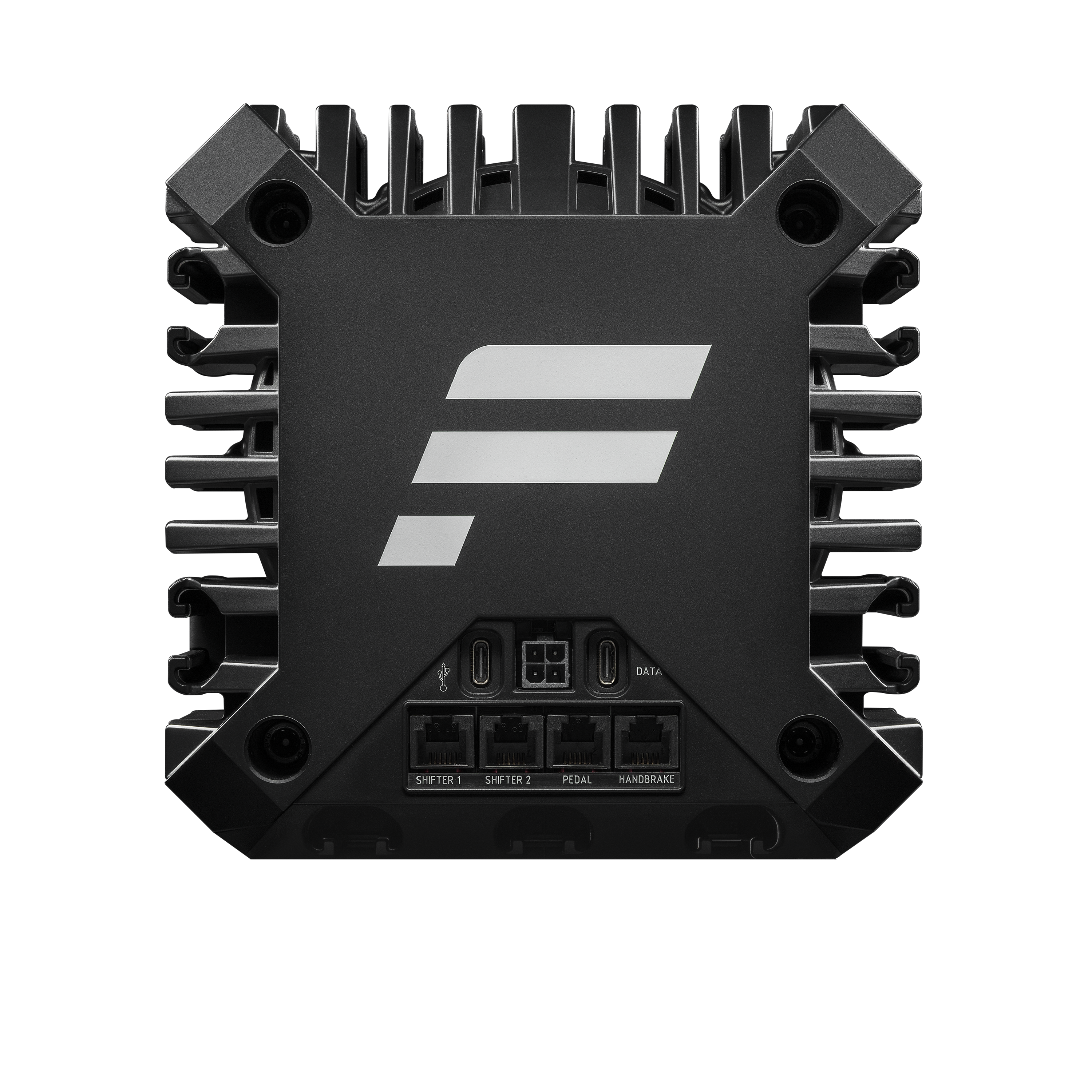

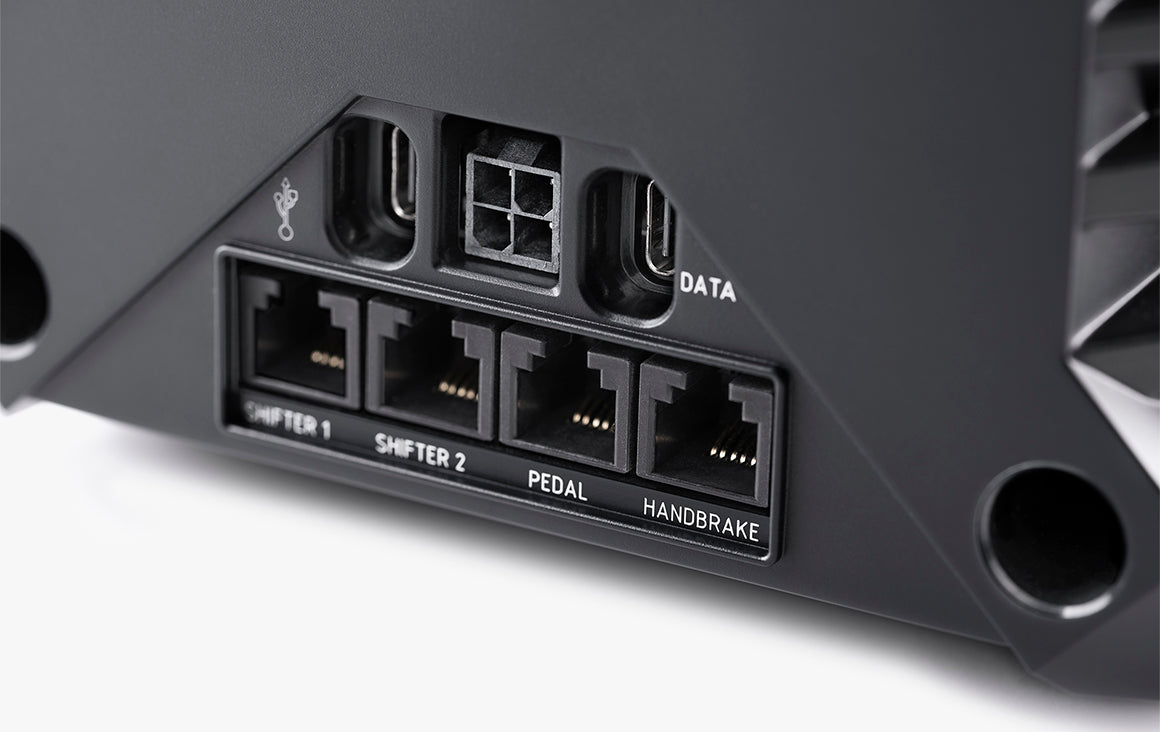

| Ports | Power Supply USB-C Fanatec DataPort-C Shifter 1 Shifter 2 Pedals Handbrake |
| Product Dimensions | 215(L) x 160(W) x 160(H) mm |
| Product Weight | 4,9 kg |
| Warranty | Three Years - Local country regulations are applicable |
Package Content
CSL DD Wheel Base
QR2 Lite Base-Side (Type-C) preinstalled

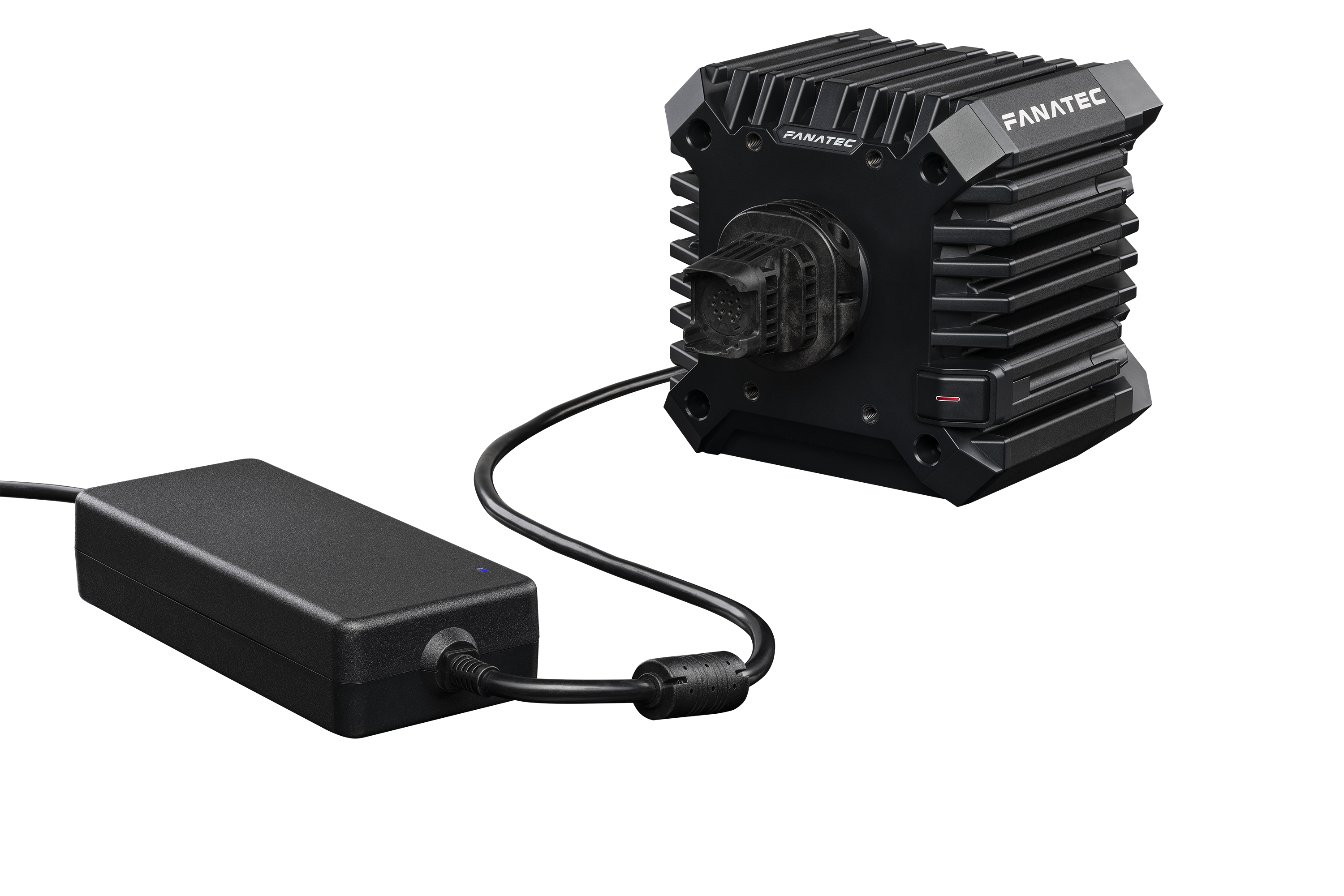

Boost Kit 180 power supply (regional)
4x T-nuts for rail mount system
USB cable (Type-C to Type-A)
Quick Guide
