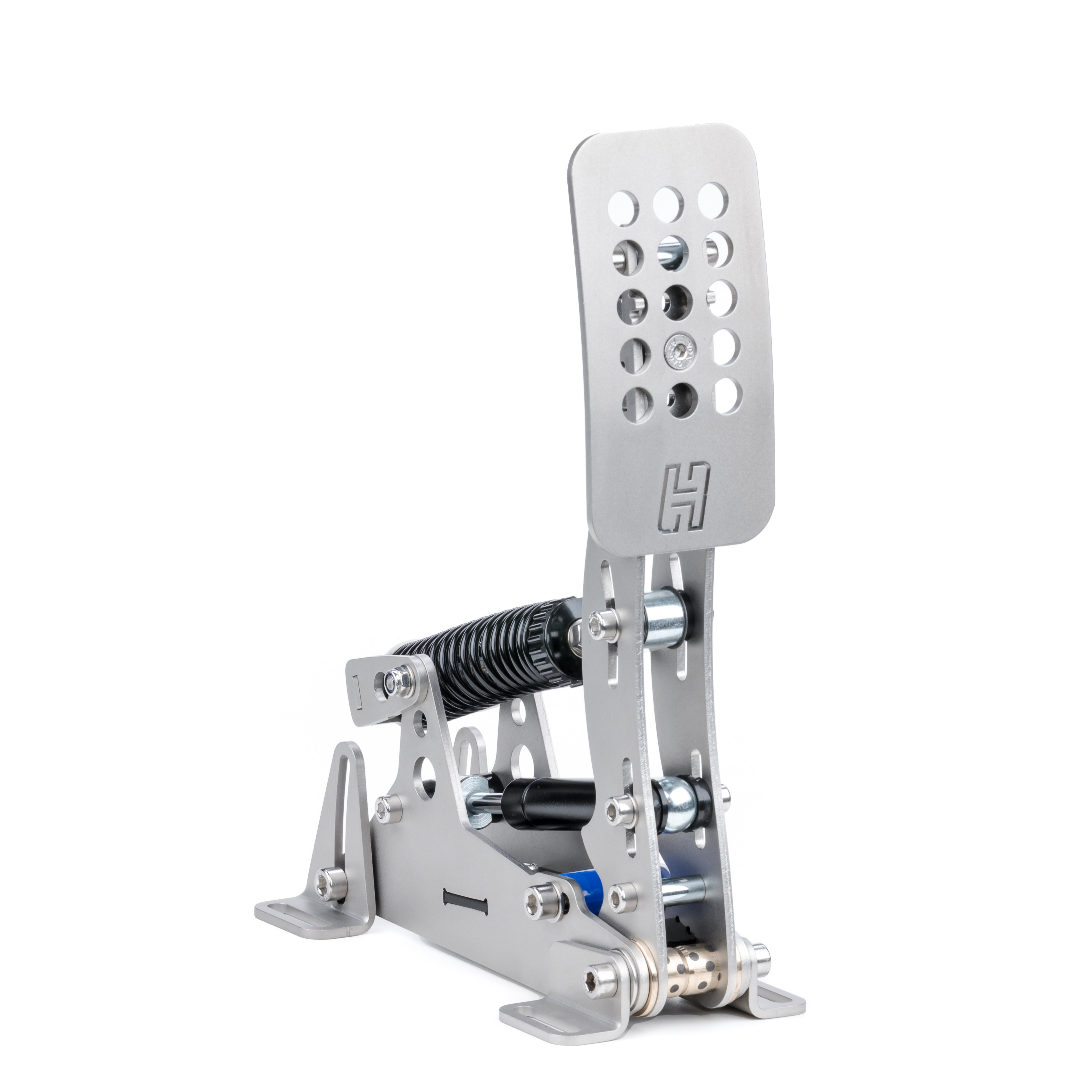

Heusinkveld Ultimate+ 3-pedal set Silver

Precision and performance
Heusinkveld Ultimate+ are designed for high-end professional motorsport simulators. A strong, compact, durable and adjustable pedal set which is capable of simulating pedal loads as high as in real GT and F1 cars. The proof is in the trust of real drivers and Esport drivers using the Ultimate+ pedals for training.

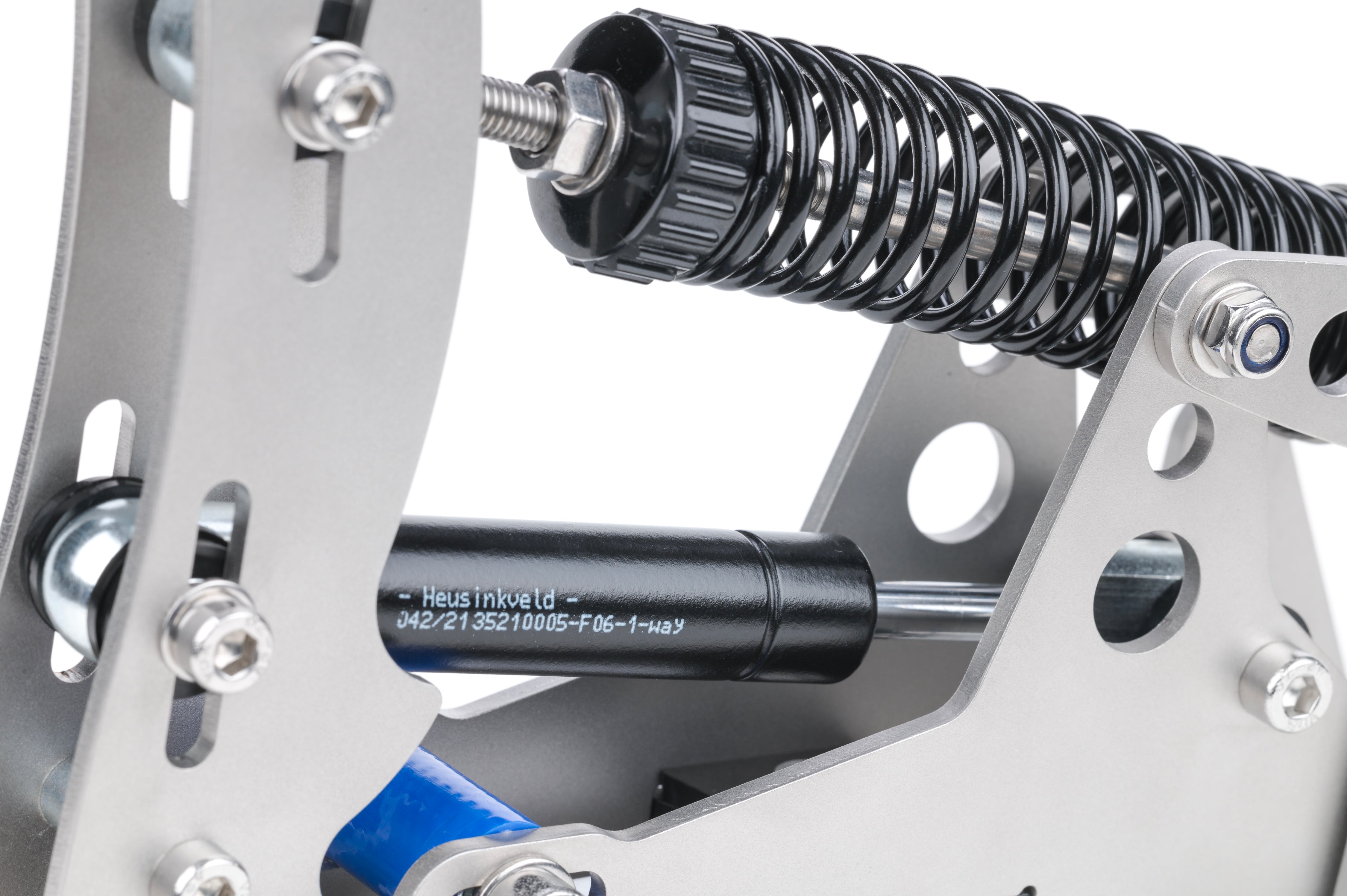

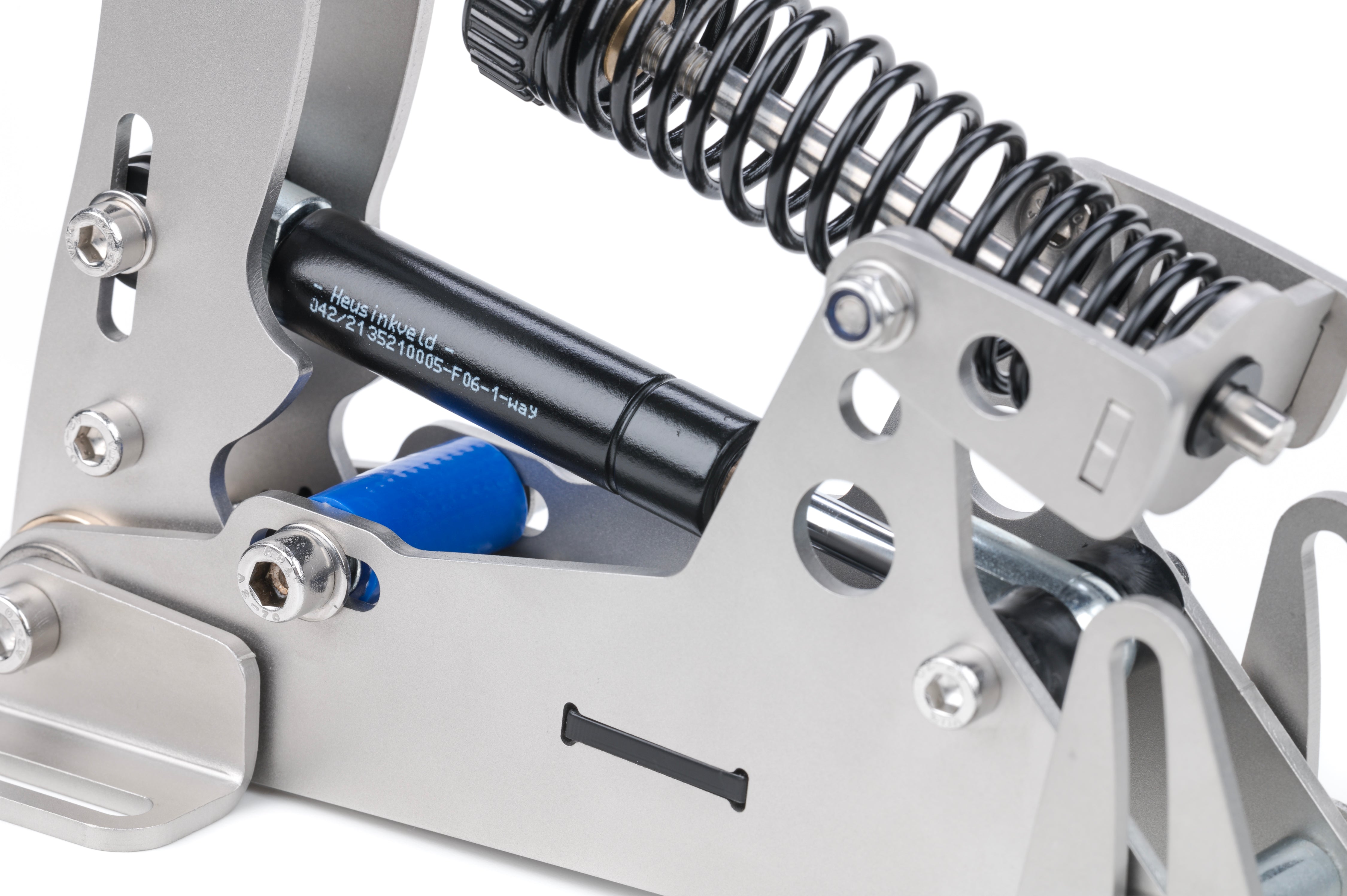

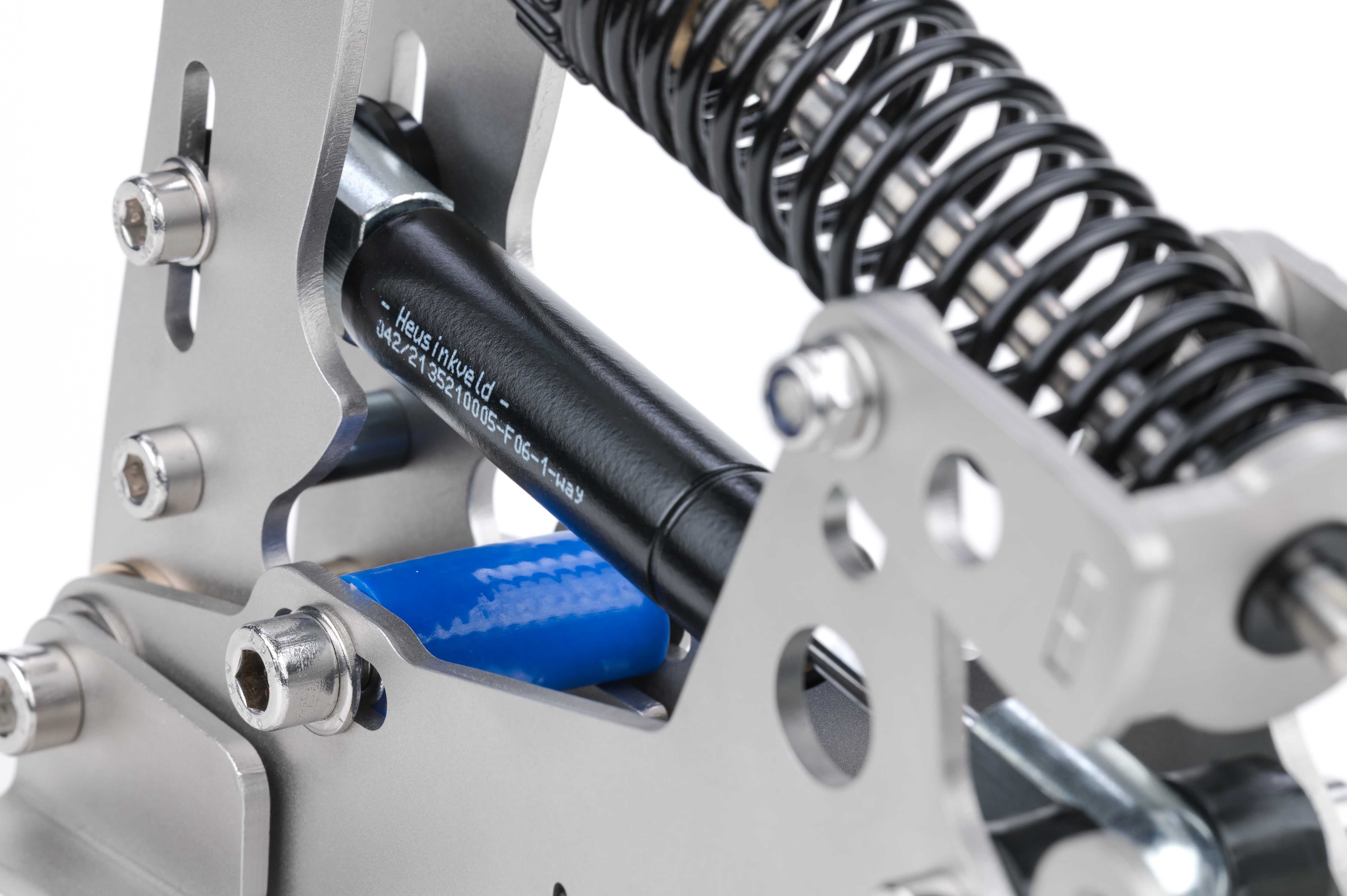

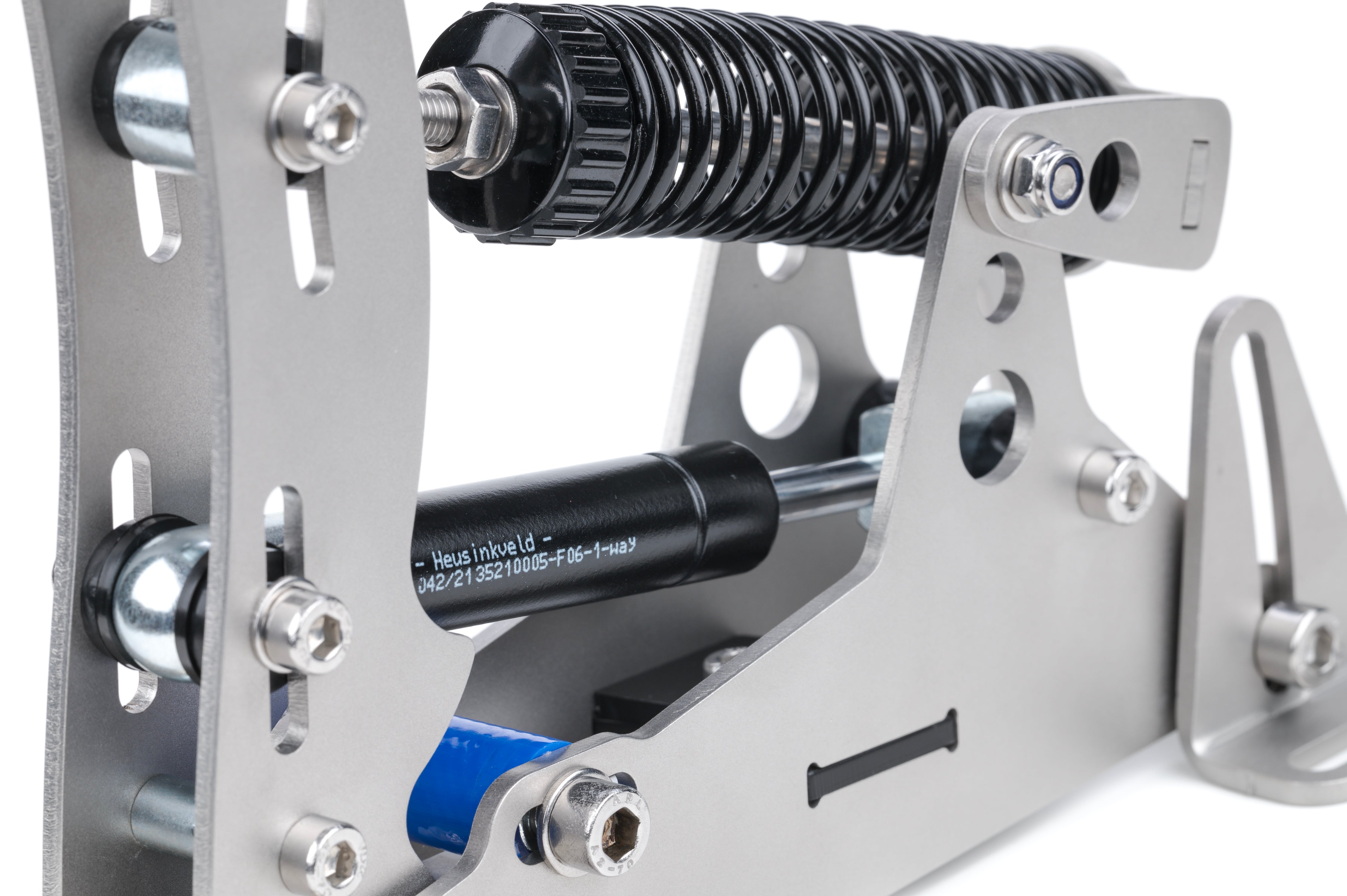

The pedals (brake, throttle and clutch) offer a strong and stiff feeling, the Heusinkveld custom made elastomers for the brake pedal providing you a realistic progressive brake feel, even after thousands of races. The hydraulic damping on every pedal is ultra-reliable and do not require periodic maintenance.

Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.

Each pedal has different adjustment options but some adjustments are for all pedals:

• Pedal angle

• Pedal plate height

• Hydraulic damping

Throttle & Clutch:

• Pedal travel

• Overall pedal force

• Pedal spring preload

Brake only:

• Pedal resistance

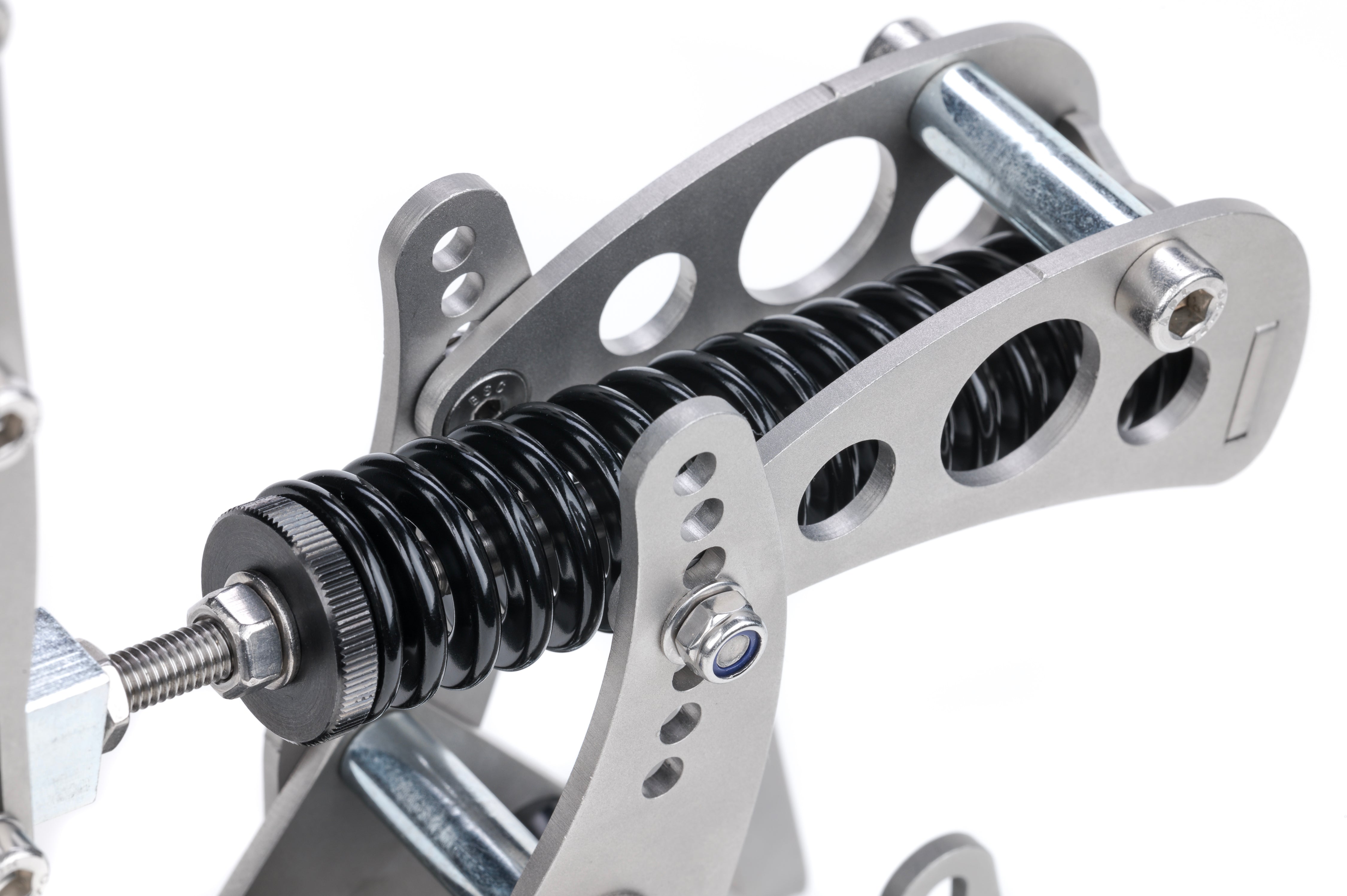

• Coil spring preload

Clutch only:

• Pedal force curve

Software:

• Output curves

• Deadzones

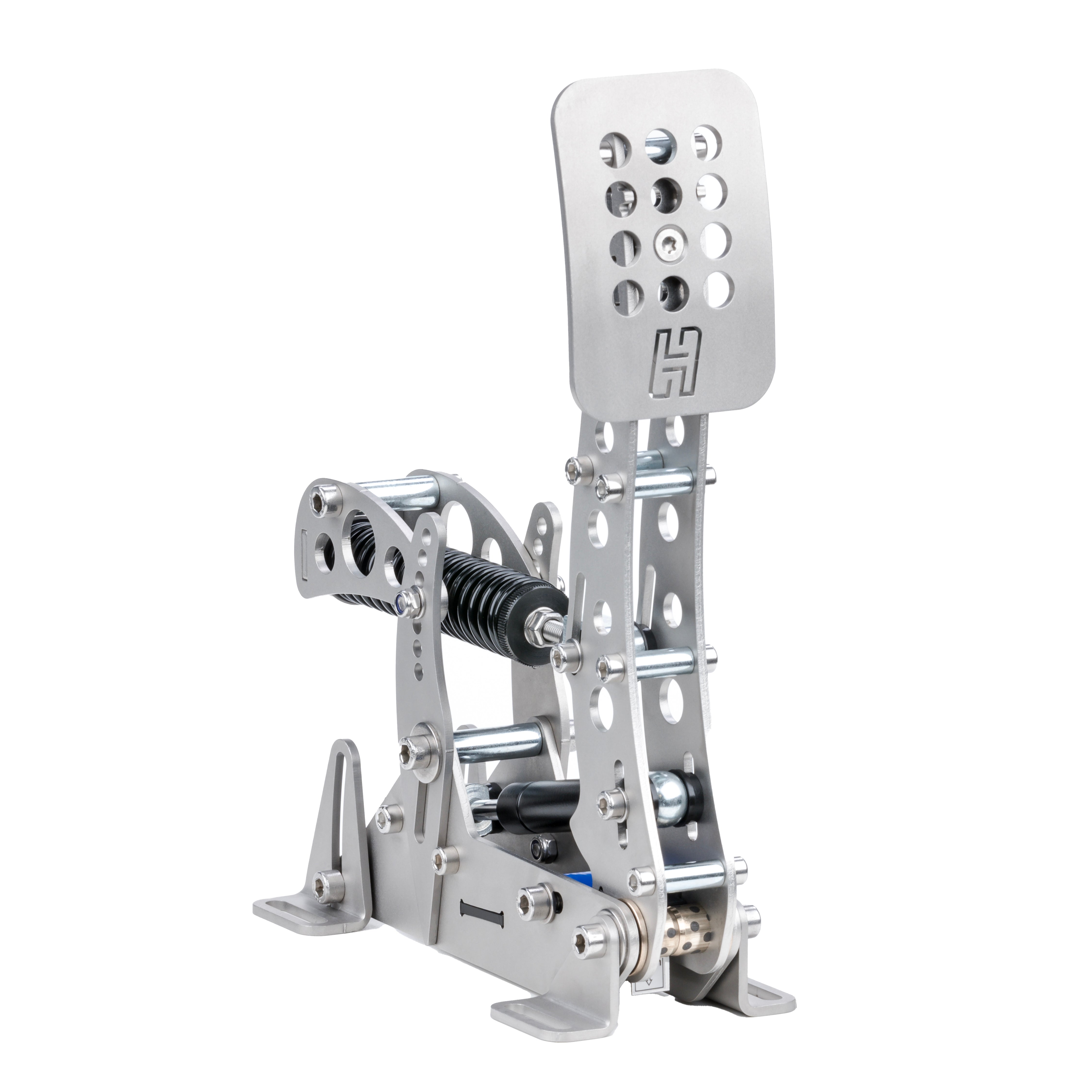

Heusinkveld Ultimate+ Silver 3-pedal set contains a clutch, throttle and brake pedal

Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. The controller enclosure is made of steel and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate.

Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Ultimate+, even if you use the optional Ultimate+ Baseplate.

The Sim Pedals Ultimate+ can be used in the following driving simulator environments:
– For professional driver training
– For home use (eg. eSports simulators, simracing enthusiasts)
– In commercial applications (eg. rental simulators) (deze weglaten ivm RC pedals?)

This product is supported on PC’s with Windows 10 or newer. It is not supported on Linux or consoles such as Xbox or Playstation.
