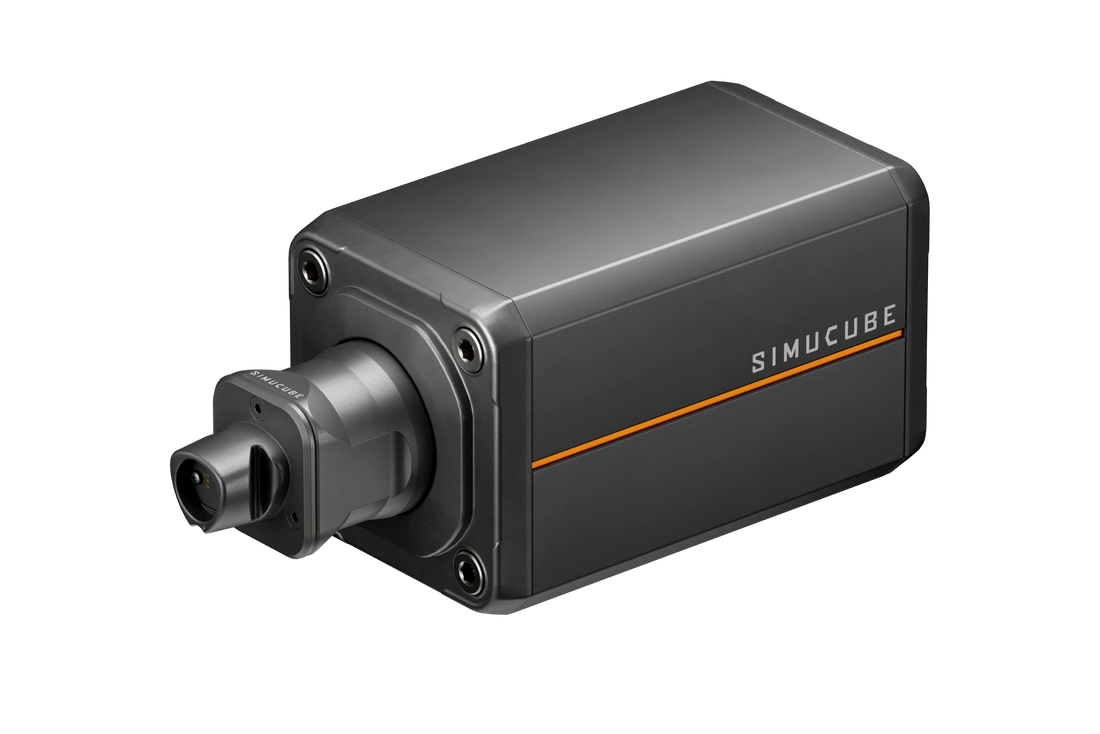

Simucube 3 Ultimate Wheelbase
Fulfillment within 3 business days.
Seasonal demand may extend delivery times.
Please refer to each product’s Black Friday delivery schedule above.
Simucube 3 Ultimate is a direct drive force feedback wheelbase that raises performance to an entirely new level, with demands so high it required a completely new type of motor. Featuring an advanced direct drive optimized IPM motor and it offers 35 Nm of torque with maximum response speed, all while using less power. Professional-grade performance, taken to the next level.
- Precise, smooth, industry-leading direct drive force feedback (35 Nm)
- Industrial-grade servo motors engineered exclusively for Simucube
- Enhanced detail – telemetry‑based effects like ABS, RPM, and road texture
- Completely re-engineered the control algorithm for maximum accuracy and silent performance
- Frictionless setup – front & bottom mounting, versatile adapters
Note! One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.
Technical Details:
Dimensions:
- Wheel base dimensions: 135 x 135 x 323 mm
- Package dimensions: 190 x 300 x 390 mm
- Mounting: Front and Bottom
- Mounting hole pattern DIA: 135 mm and 78,4 mm
- Flange centering feature DIA: 110 mm
- Wheel base weight: 13 kg
Specifications
- Motor type: IPM motor. Maximum response speed. Direct drive optimized IPM motor
- Max torque: 35 Nm
- Angle sensor: 23-bit absolute (8 000 000 steps)
- Power supply: 360 W (450 W peak)
What's included:
- 1x Simucube 3 Ultimate wheelbase
- 1x Power adapter
- 1x RJ45 Cable
- 1x AC power cord
- 1x Quick Start Guide
- 1x Control box
Fasteners kit
- 4x M8 washer
- 4x M6 washer
- 2x M5 washer
- 4x M8x35 allen head bolt
- 4x M8x30 allen head bolt
- 2x M5x30 allen head bolt
- 4x M6x16 allen head bolt
- 2x M5 t-slot nut 8mm slot
Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub
Compatibility:
- Link Quick Release for Simucube 3
- One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.
