Qubic QS-BT1
$1,799.00
Fulfillment within 3 business days.
Seasonal demand may extend delivery times.
Qubic QS-BT1
Sale price$1,799.00 USD
$1,799.00
QS-BT1 – HIGHLIGHTS
- Powerful Performance: 360W rated power with 3A/115VAC and 2A/230VAC power source.
- Dual-Channel Capability: Two independent channels for a versatile and dynamic simulation experience.
- Advanced Protection: Class 1 protection for enhanced safety during operation.
- Versatile Connectivity: USB interface for seamless integration with Windows PC.
- Pulling Force: 20.5kg/45lbs/200N per channel, providing realistic feedback.
- Multifunctional RGB: Illuminated with customizable RGB lighting for a visually immersive experience.
- Compact and Lightweight: Streamlined dimensions and device weight for practical use.
- Motion Platforms Compatibility: Compatible with QS, PS, HS motion platforms for extended versatility and most cockpits available on the market.
- Effect Diversity: Supported effects vary based on the specific game in use.
- User-Friendly Setup: Maximum length of USB and Motion-Lock cables at 3m for flexible positioning.
Proudly made in EU: Engineered, Designed and Manufactured in Poland
Included:
- Main unit (QS-BT1)
- USB cable
- External power supply with power cord

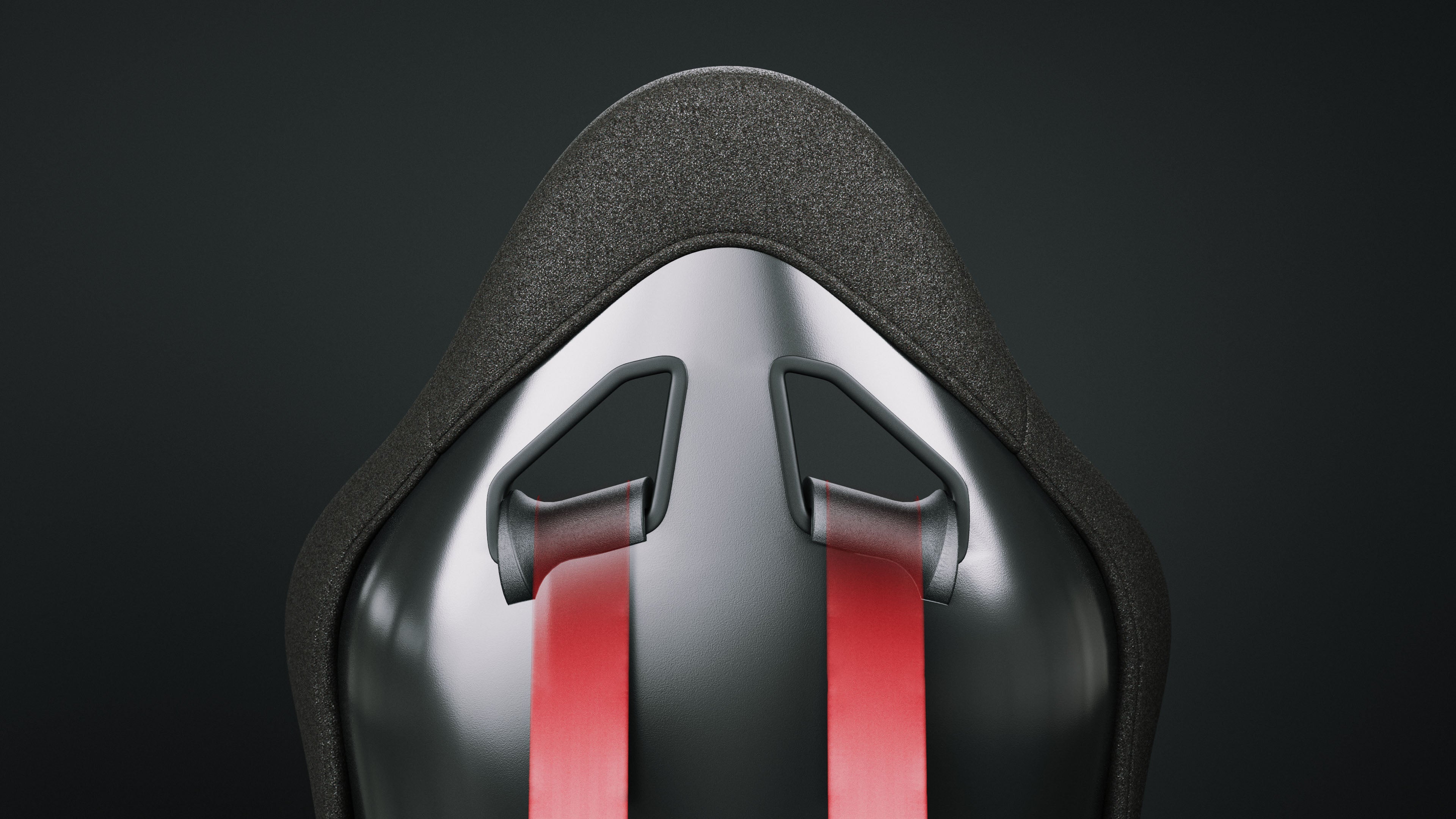

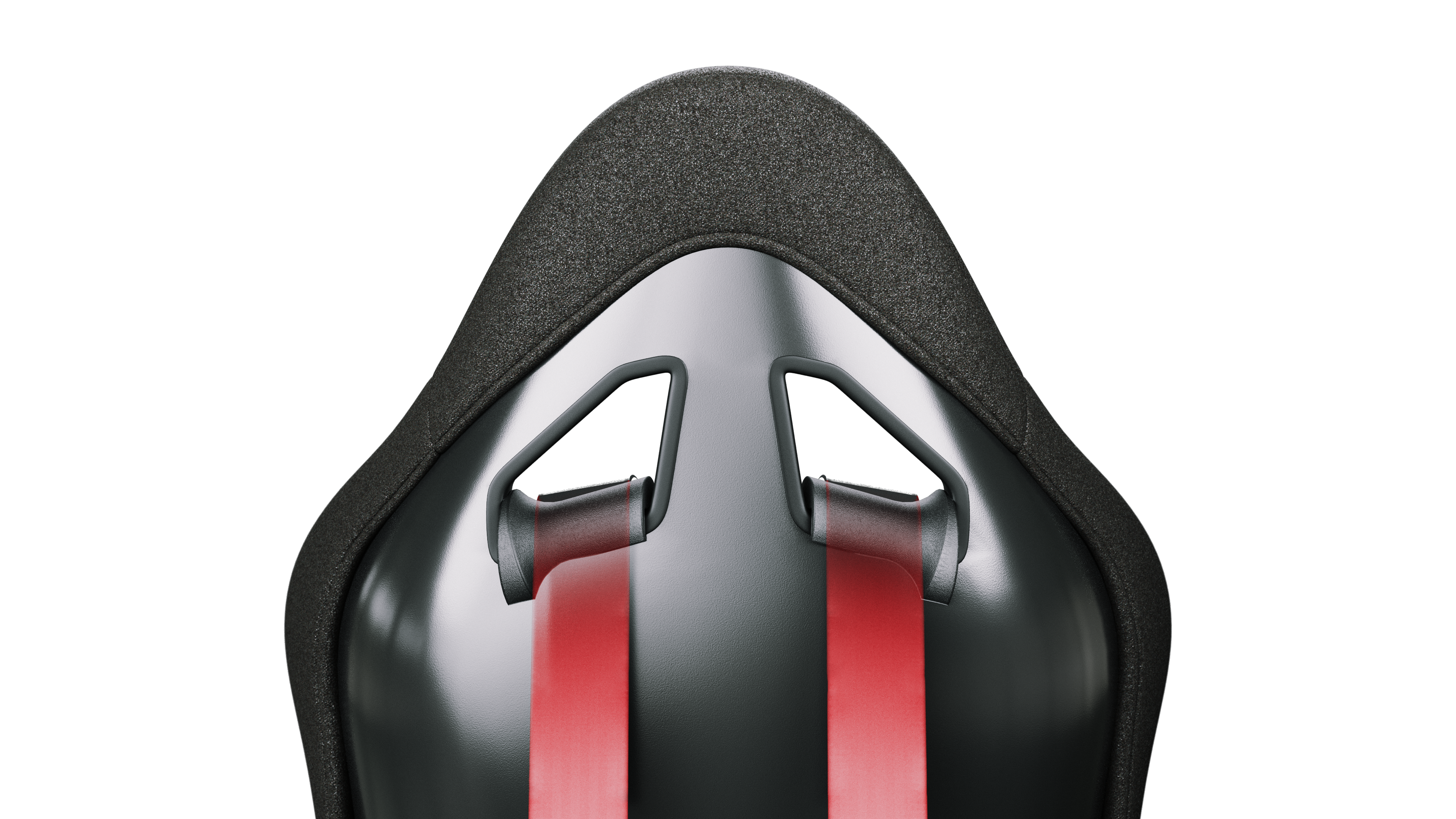

- 2x Low friction inserts for seat belts slots
- Universal mounting adapter for aluminium cockpits with necessary hardware
- Motion-Lock jumper + interlink cable
Not included:
- Seat belts
- Cockpit
- Bucket seat
- Motion-Lock remote switch (sold separately)
- Dedicated adapter for other cockpits (sold separately)
GENERAL SPECIFICATION OF QS-BT1
- Power Source: 4A/115VAC, 2A/230VAC
- Rated Power: 321 W
- Inrush Current: 20A/115VAC, 40A/230VAC
- Protection Class: 1
- Interface: USB
- Number of Independent Channels: 2
- Pulling Force: 20.5 kg/45 lbs/200 N per channel
- Storage Temperatures: +5°C to +40°C
- Full Performance Temperatures: +5°C to +35°C
- Computer Compatibility: Windows PC
- Supported Effects: Depends on Specific Game
- Multifunctional RGB
- Maximum Length of USB Cable: 3m
- Maximum Length of Motion-Lock Cable: 3m
- Motion Platforms Compatibility: QS, PS, HS [1]

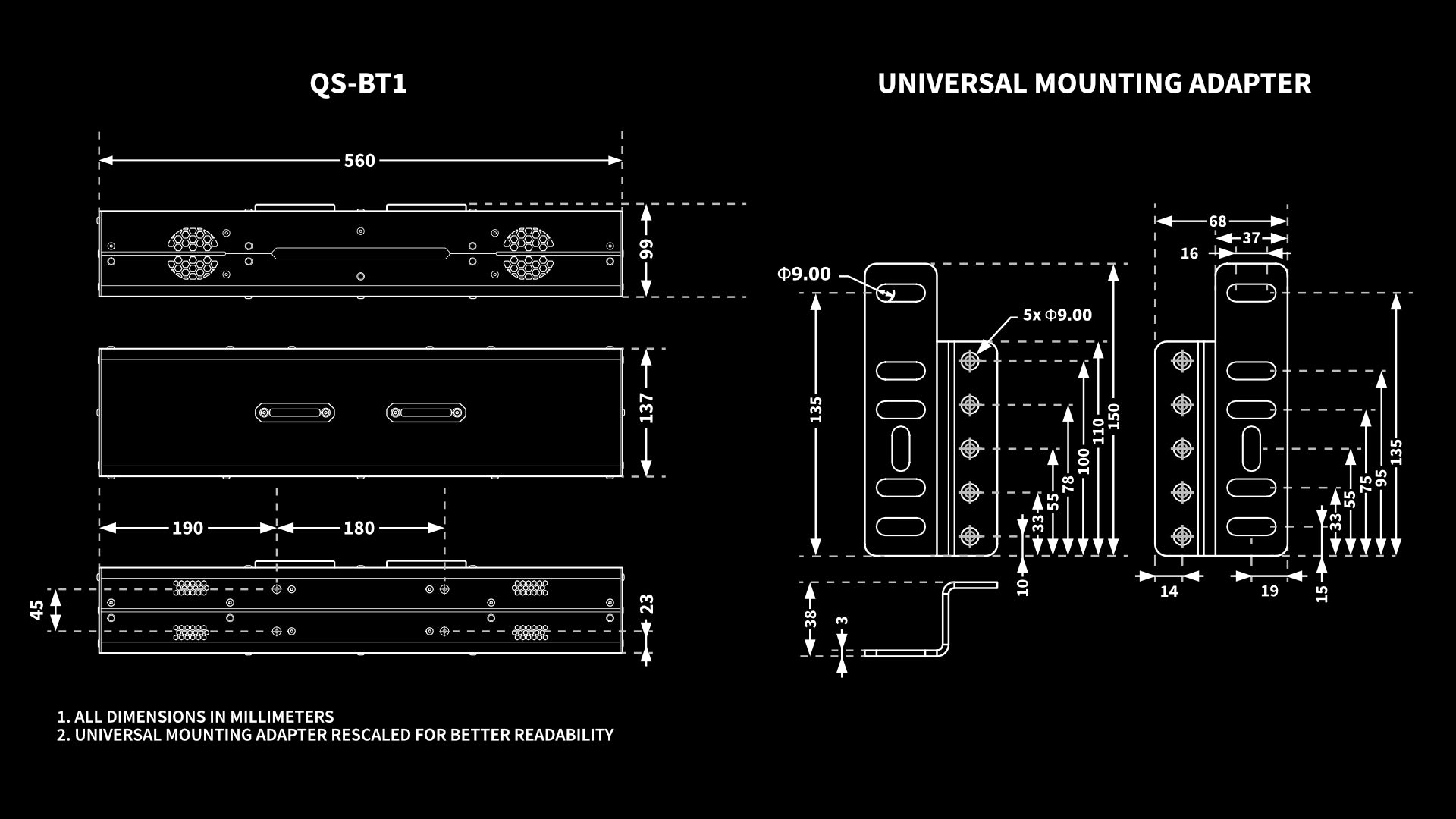

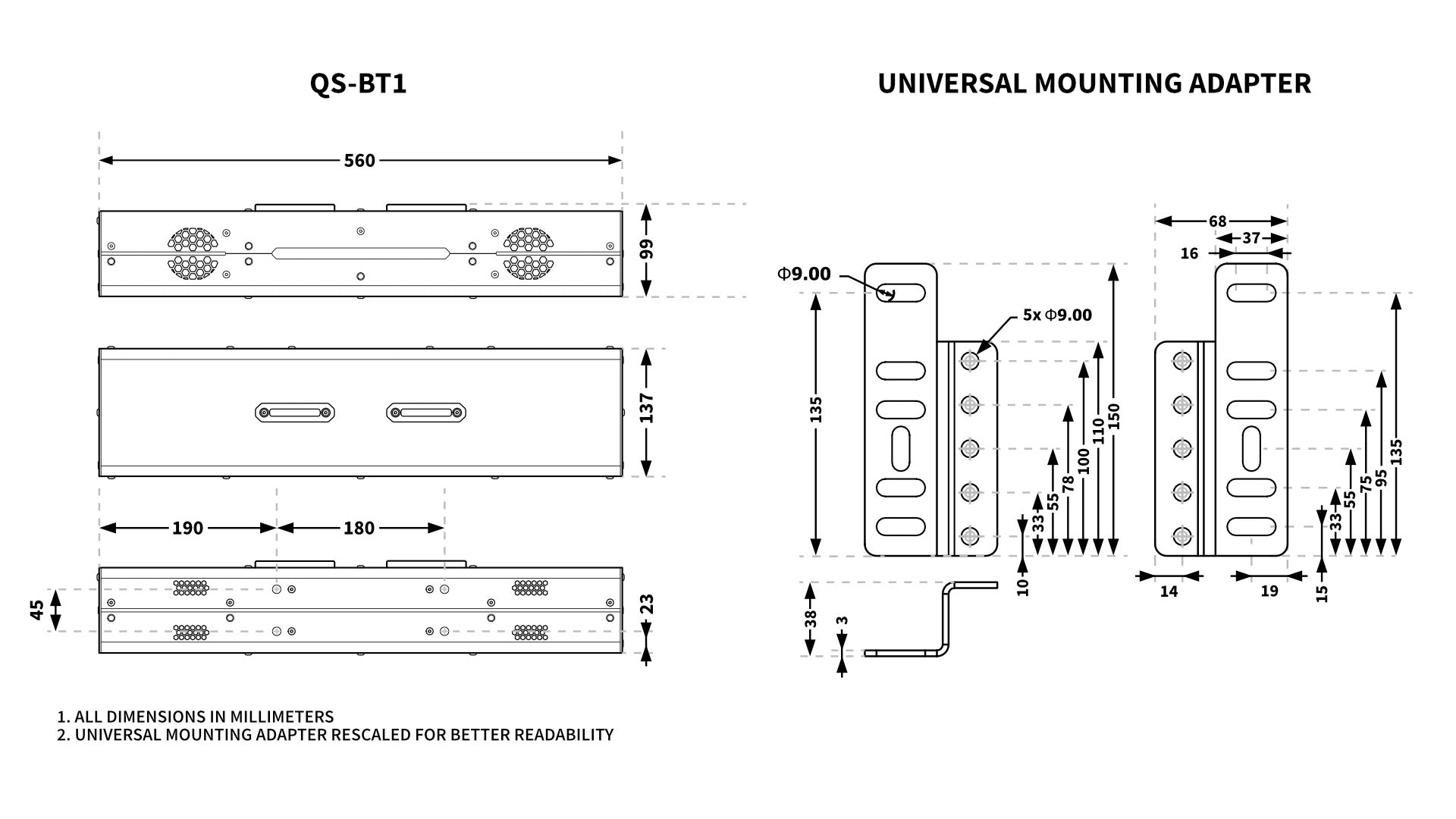

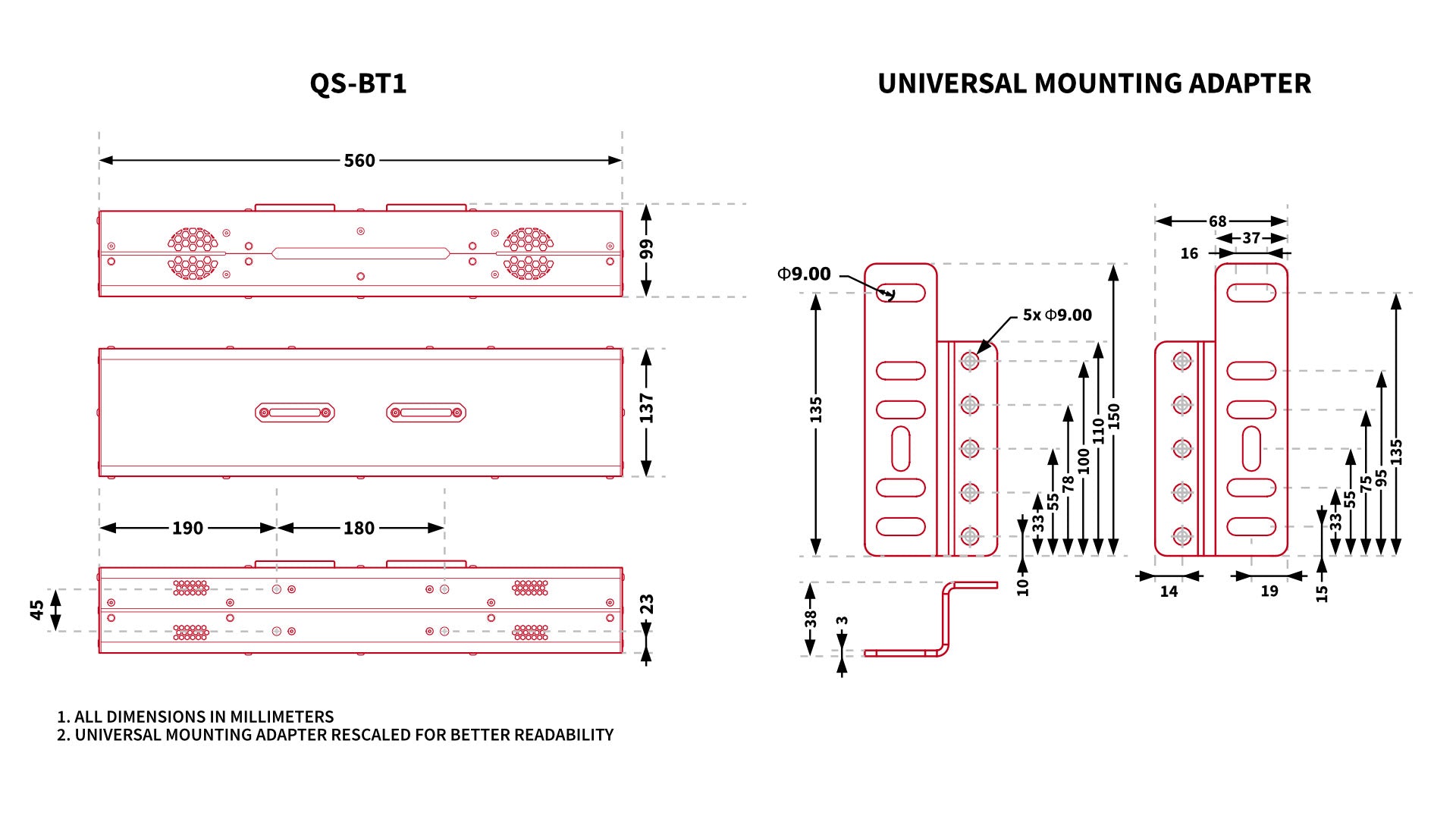

MAIN DEVICES DIMENSIONS:
- Main Dimensions: 561 x 99 x 138 mm/22.13 x 3.90 x 5.43 in
- Main Device Weight: 12 kg/26.46 lbs
- Power Supply Weight: 2.8 kg/6.17 lbs

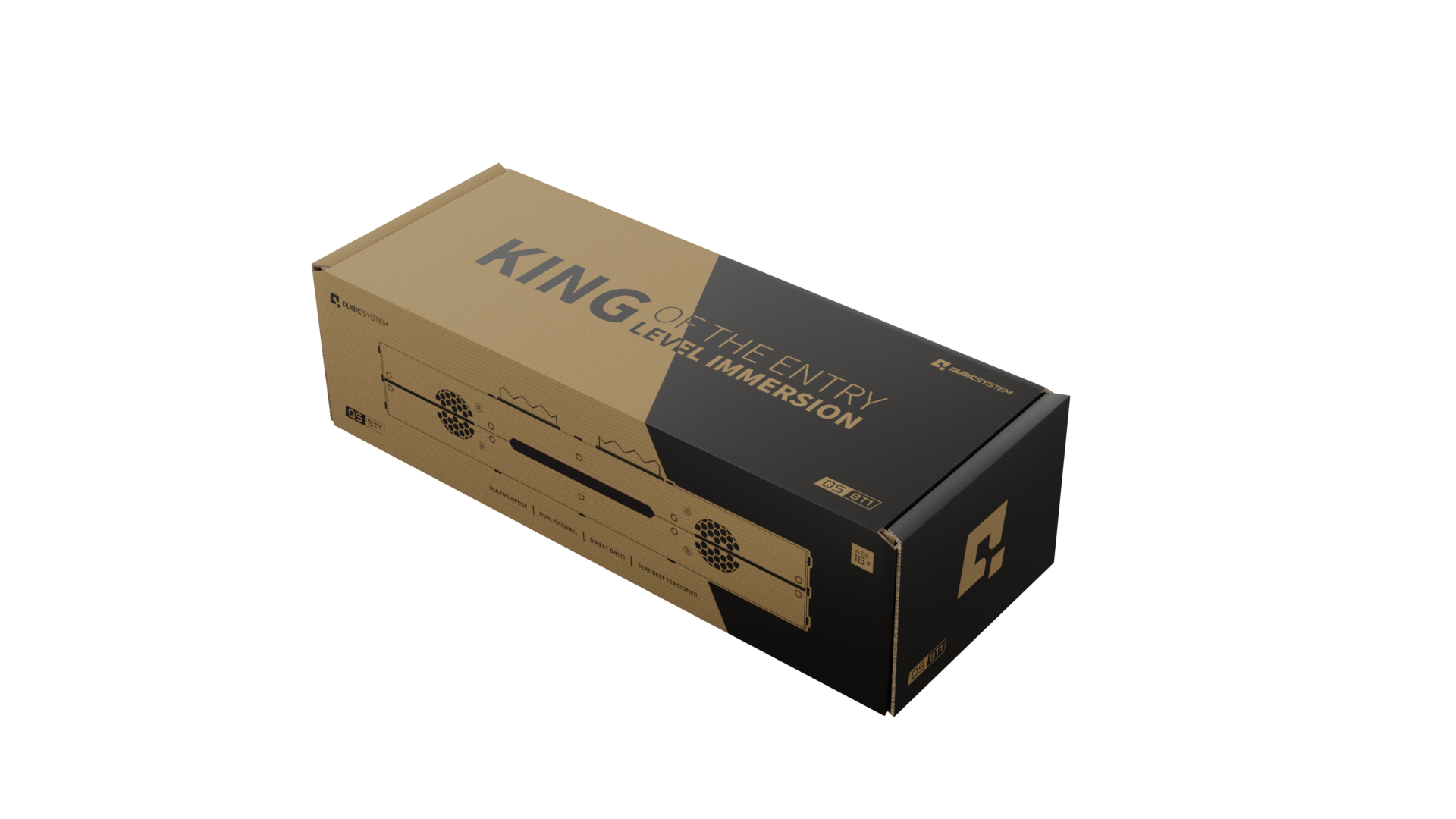

PACKAGING DETAILS:
- Packing Box Dimensions: 660 x 255 x 180 mm/25.98 x 10.04 x 7.09 in
- Packing Box Weight: 19kg/42 lb
